HASTINGS SURPLUS MACHINERY AUCTION

C.M.T. Ursus 250 2.5 Metre Lathe

Skylarc Ref O205058

Model: C.M.T. Ursus 250
Three phase
2500mm between centres
105mm spindle bore
23rpm - 1000rpm spindle speeds
Metric and imperial thread cutting
Quick change tool post
13 x quick change tool holders with some tooling
310mm four jaw chuck
240mm three jaw chuck
310mm three jaw chuck
400mm four jaw chuck
500mm faceplate
600mm faceplate
Fixed steady
Morse taper No.5 tailstock
Rasson digital read out
Steel rack for chuck storage
Timber cabinet on wheels with range of accessories
You will need your own lifting equipment to load this machine

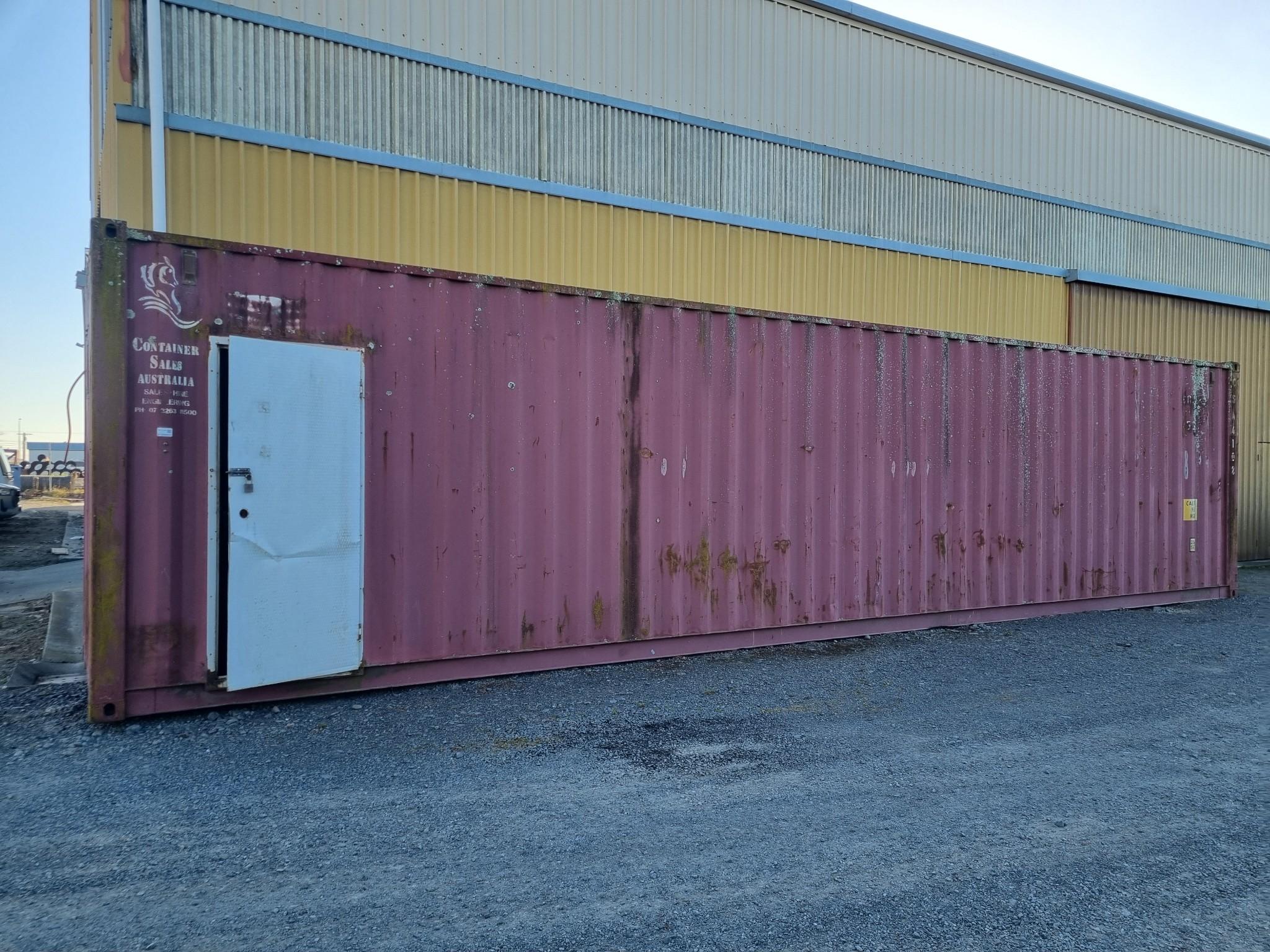

40-foot Converted Shipping Container Office & Storage

Skylarc Ref U203972

40-foot Converted Shipping Container Mobile Office and Storage.
Container manufactured 11/1996.
Approx 4000kg empty weight.
Interior has been divided into two separate rooms. Small room appears to have been an office or break room and is approx 3450x 2350mm. The small room has electrical circuit board on wall. Windows installed on one side. Roughly patched hole in side by circuit board. Added access door missing lock.
Second larger room is accessed by original Container doors. Has upper storage rack added. Three roughly patched holes cut in roof for ventilation, see photos. Some water leakage from the roof..
Electrical lighting needs repair. Some leakage.

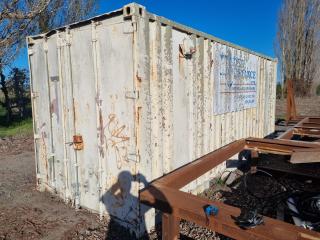

20-foot Shipping Container Mobile Workshop Conversion

Skylarc Ref T203971

20-foot Shipping Container Mobile Workshop Conversion.
20A 3-phase Electrical installed as well as single phase.
Wood Workbench installed along one side and back wall.
Record No.5 vice attached to workbench.
Roof lighting needs repair.
Repaired hole in roof with unfixed holes nearby.
Original ID plate for container is missing so age is unknown.

Ercolina CE50 Hydralic Roller

Skylarc Ref C205046

NCML CE50MR3 hydraulic roller bender.
Manufactured 2001.
Model type CE50MR3.
Three roll configuration.
Three phase 16 amp 4 pin plug
Max RPM 8 on hex shaft.
Foot controller with display
Wide range of tooling

Kingsland Multi 70 Hydraulic Punching Shearing Machine

Skylarc Ref E205048

Kingsland Engineering Co. Ltd. Multi 70 hydraulic punching and shearing machine.
Model: Multi 70.
Capable of punching round bar up to 45mm diameter and square bar up to 45mm.
Shearing capacity for flat bar 300 x 20mm and 375 x 15mm.
Section cutting for round bar up to 45mm and square bar up to 45mm.
Angle cutting capability at 90 degrees and 45 degrees.
Notching rectangular up to 45mm and 90mm with material thickness up to 10mm.
Includes wide range of punches
Diesel engine with pump.
Foot controllers

ZJ Three Phase Radial Arm Drill

Skylarc Ref D205047

Z3032x10/1 radial drilling machine manufactured by Zhong Tuo You Zhu Factory, China.
Model designation Z3032x10/1.
Maximum drilling hole diameter 32mm.
Automatic feed 0.10 - 1.25mm/r
Mounted on steel platform base.
Includes coolant pump system.
Three phase 16 amp 4 pin plug
600mm x 450mm x 450mm tall drill table
Spindle speeds 32 - 2500 rpm
Morse taper No.4 spindle
Approx 300mm spindle travel

Tandem Axle Trailer

Skylarc Ref Y205042

On road costs included

Yes

Best contact time

Business hours

1989 tandem axle
3020mm x 1800mm x 250mm tall sides
Timber deck
Will have a new WOF.
Reg expires 12/03/2027
Removable drop sides all round

Herbert Finger Folder

Skylarc Ref A205044

2450mm folding width
12 fingers

Stankoimport Tool Room Lathe

Skylarc Ref P205059

Model: Stanko 1N611N
Three phase
500mm between centres
Spindle speeds 20 - 2000rpm
25mm spindle bore
300mm swing over bed
Metric and imperial thread cutting
Rapid traverse
Rasson digital read out
Coolant pump
Fixed steady
160mm three jaw chuck
205mm four jaw chuck
250mm faceplate
Quick change tool post
7 x quick change tool holders with some tooling
Cabinet with range of accessories
Die threading head
Some tooling

Three Phase Workshop Press

Skylarc Ref B205045

Unknown capacity but estimate 10 - 20 ton
Three phase 4 pin 16 amp plug
1120mm between uprights
Adjustable height table
Approx 200mm ram travel

Long Chang LC-30A Drilling & Milling Machine

Skylarc Ref I205052

Long Chang Machinery Co Ltd drilling and milling machine.
Model: LC-30A.
Made in Taiwan.
Drilling capacity: 30mm diameter.
Spindle feed travel: 130mm.
Motor: 2 HP 3 phase.
800mm x 240mm t slot table
Belt drive
Morse taper No.3 spindle taper
1/2" chuck
Clarkson Autoloc chuck
125mm milling vice
Mounted on heavy duty cast stand

TOS Universal Milling Machine

Skylarc Ref J205053

TOS Type FA3AU
NT40 spindle taper
Horizontal arbors
Arbor supports
Spindle speeds 45 - 2000rpm
1370mm x 300mm t slot table
Rototary table
Additional head
Power feeds
Newall Topaz digital read out

Large Heavy Steel Rack w/ Box Angle, Tube Steel Contents

Skylarc Ref W203480

Large Heavy Steel Rack w/ Box Angle, Tube Steel Contents.
Large steel frame made from welded 200x75mm channel steel vertical and foot beams with 75x50x7mm box steel Rack shelf arms.
Shelf arm widths Cary from 360mm to 800mm.
Auction also includes all the box angle, Tubular, and channel steel lengths seen on the Rack. Also some steel rebar on top shelves.
Lengths vary with longest lengths up to 8-metres.
Rack length is approx 6.3 metres.

1980 Tandem Axle Trailer

Skylarc Ref Z205043

On road costs included

Yes

Best contact time

Business hours

O'Leary tandem axle trailer
2500mm x 1540mm ply deck
250mm tall sides
Drop front and rear
Will have a new WOF on collection
Reg expires 12/03/2027

Eagle Surface Grinder

Skylarc Ref Q205060

Three phase
16 amp 4 pin plug
450mm x 150mm t slot table
355mm x 150mm magnetic table
Approx 180mm max grinding wheel size

ABB Robot with Vacuum Lifter

Skylarc Ref R205061

Model: ABB RB4400-M97A
Manufactured 1998
ABB IRB4400-M97A control unit
Teach pendant
226 hours on clock
Has been used for research and development of vacuum lifting systems

Kuroda Boring and Facing Head

Skylarc Ref S205062

Kuroda KKS boring and facing head
UFB-4 MT-4 U5/8
NT40 spindle taper
Case and accessories

Nordson PROBlue 7 Hot Melt Adhesive Glue Machine

Skylarc Ref C203876

Nordson PROBlue 7 Hot Melt Adhesive Glue Machine.
Single or 3-phase power operation.
Includes mounting plate, hoses, and assorted as new spare parts, see photos.
Glue Machine shows some usage.

Nordson PROBlue 7 Hot Melt Adhesive Glue Machine

Skylarc Ref B203875

Nordson PROBlue 7 Hot Melt Adhesive Glue Machine.
Single or 3-phase power operation.
Includes mounting plate, hoses, and assorted as new spare parts, see photos.
Glue Machine shows some usage.

Nagata 5-Ton Capacity Crane Scale HC-33, Battery Faulty

Skylarc Ref Q203552

Nagata 5-Ton Capacity Crane Scale.
Model No. HC-33.
Made in Japan.
Includes AC charging cord.
Powers on when plugged into AC power, gave it a slight pull using my foot, see photos, which did register on the display.
The unit was left to charge for 4 hours and when unplugged the battery would not power up the unit, likely a faulty battery.
Unable to ship as unit too heavy for the courier.

Stainless Steel Materials Storage Rack w/ Stainless Contents

Skylarc Ref V205117

Stainless Steel Materials Storage Rack.
50x50mm box stainless steel frame with 260mm long 25mm diameter stainless bar arms for storing long materials.
Auction includes the various stainless steel material lengths on the rack. Lengths include stainless box, hollow tube, solid rod, flat bar.
Full lengths are up to 6-metres long.
Items with visible manufacturer labeling indicate 304 grade stainless. Unknown if there are any other grades on the rack.

Mitchell Three Phase Lathe

Skylarc Ref H205051

Approx 1000mm between centers
Approx 480mm swing over bed
Approx 800mm swing over gap
200mm removable gap
Quick change tool post with 2 x tool holders
26 - 477 rpm spindle speeds
Imperial thread cutting (have not seen the lead screw running)
610mm faceplate
350mm faceplate
250mm three jaw chuck
400mm four jaw chuck
Fixed steady
Morse taper No.4 tailstock
Cupboard unit with some accessories

4x AusTube Mills C450PLUS DuraGal Galvanised Steel

Skylarc Ref K203754

AusTube Mills C450PLUS DuraGal Galvanized Structural Steel Lengths.
All four Lengths are 8020mm long.
Three Lengths are 75x75x4mm.
Fourth length is 100x100x4mm.
As new unused workshop.materials stock.

Heavy Steel Welding Workbench Table

Skylarc Ref S203580

Heavy Steel Welding Workbench Table.
100x100mm and 50x50mm box steel frame.
18mm thick plate steel top
Welding grounding cable attached underneath.
10A single phase Powerboard and electrical plugs mounted underneath.
Very heavy workbench.
See our other listings for more of these very sturdy heavy workbench tables.

Heavy Steel Welding Workbench Table

Skylarc Ref R203579

Heavy Steel Welding Workbench Table.
100x100mm and 50x50mm box steel frame.
18mm thick plate steel top
10A single phase 3-plug box mounted underneath but is not currently wired.
See our other listings for more of these very sturdy heavy workbench tables.

Heavy Steel Welding Workbench Table

Skylarc Ref Q203578

Heavy Steel Welding Workbench Table.
100x100mm and 50x50mm box steel frame.
18mm thick plate steel top
Welding grounding cable attached underneath.
10A single phase Powerboard mounted underneath.
10mm Air Hose lines mounted underneath.
Very heavy workbench.
See our other listings for more of these very sturdy heavy workbench tables.

Heavy Steel Welding Workbench Table

Skylarc Ref P203577

Heavy Steel Welding Workbench Table.
100x100mm and 50x50mm box steel frame.
18mm thick plate steel top with a 1200x120px6mm aluminum plate added over one half of top surface. Within this aluminum sheet and the steel below it there are 35x 10mm diameter threaded holes spaced 150mm apart on centre.
10mm Air Hose system mounted underneath.
Very heavy workbench.
See our other listings for more of these very sturdy heavy workbench tables.

25x Parker Pneumatics Air Spring Actuator Bellows

Skylarc Ref A203874

25x Parker Pneumatics Air Spring Actuator Bellows.
All are Part No.9109400.
Each is 110mm diameter, 60mm tall.
All are as new leftover workshop parts stock.
25x units in this auction.

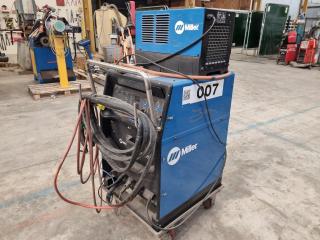

Miller Syncrowave 250 DX Squarewave Power Source

Skylarc Ref B203927

Miller Syncrowave 250 DX CC-AC/DC Squarewave Power Source.
Manufactured in USA by Miller Electric Mfg. Co., Appleton, WI.
Mounted on steel trolley with wheels.
32A 4-pin 3-phase power plug.
Includes Miller Coolmate 3 water cooler.
Coolmate 3 serial number MB480059-J.
Coolmate 3 specifications: 115V single phase, 5.9A maximum, 1.42kW pump power.
Syncrowave 250 DX control panel features multiple welding parameters and adjustments.
Welding output specifications: 3A/10V to 309A/22V available at various percentages.
Alternate output: 3A/20V to 308A/32V available.
Open circuit voltage UO = 80V.
Power source rated for 50/60Hz operation.
Welding cables and torch hose included.
Gas regulator and pressure gauge assembly included.
Wire feeder connection port present.
Manufactured to IEC 60974-1,-2,-10 standards.

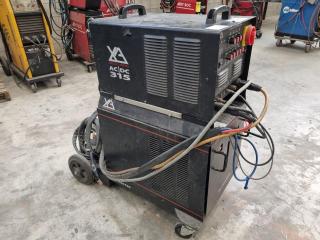

Xcel-Arc AC/DC 315 TIG Inverter

Skylarc Ref A203926

Model TIG315PAC/DC
32A 4-pin 3-phase power input
TIG output 10A to 315A at 22.6V
MMA output 20A to 300A at 32V
Pulse welding capability
AC/DC welding modes
Insulation class F
Power factor 0.93
Enclosure class IP21S
Fan cooled 50/60Hz
Welding leads
Includes gas regulator and flowmeter
Mounted on mobile trolley with wheels

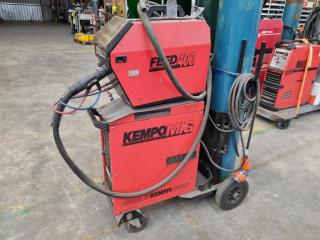

Kemppi Kempomig 4000 Welder w/ Feed400 & Trolley

Skylarc Ref Y203768

Kemppi MIG welding system comprising FEED 400 wire feeder and Kempomig 4000W power source.
Manufactured in Finland.
FEED 400 wire feeder with Synergic 1-MIG control.
Kempomig 4000W inverter power source.
Specifications for Kempomig 4000W: 20A 110V-400A/36/40V output at various duty cycles.
Input: 400V three-phase 50-60Hz.
Output: 10A/20.4V-400A/36V.
Maximum output 26.4A at 40% duty cycle.
Power consumption: 0.215kW.
FEED 400 power requirement: U1 30V AC, P1 100W.
Includes torch with 4-pin connector rated 32A 500V 50Hz IP66.
Includes welding cables.
Unit mounted on mobile trolley.
Rental gas bottle seen in the photos is NOT included

Pallet Racking Assembly Components

Skylarc Ref E203748

Pallet Racking Assembly Components.
Includes:
- 5x galvanized steel vertical frames each 900x105x4510mm.
- 8x blue horizontal beams each 1785x50x125mm.
- 24x blue horizontal beams each approx 3385x50x160mm.

John Heine Reclining Press

Skylarc Ref F205049

Model: John Heine 201a Series 2
8 ton capacity
40mm stroke
Flywheel press
Three phase 16 amp plug

Milling Machine Rotary Table

Skylarc Ref L205055

Victoria rotary table
190mm diameter three jaw chuck

5 x NT40 Tool Holders

Skylarc Ref Z205069

NT40 to MT3
NT40 to MT4
13mm keyless chuck
Short arbor
Clarkson Autoloc Chuck (No collets)

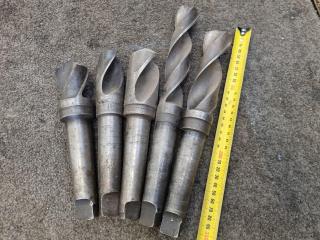

55x Morse Taper Imperial Size Drills w/ Heavy Steel Stand

Skylarc Ref M203418

55x Morse Taper Imperial Size Drills w/ Heavy Steel Stand.
Drill sizes range from 29/64" to 2"
Shank sizes include No.1, No.2, No.3, and No.4.
Includes a heavy steel display stand made from 38mm thick steel top plate with old 400mm diameter belt pulley wheel as base.
Drill condition varies with each unit.

Coventry Die Head and Thread Chasers

Skylarc Ref X205093

Coventry CHS die threading head
Lathe mount 32mm x 25mm
Wide range of threading dies

Kerrick Hippo Hot Water High Pressure Cleaner Diesel

Skylarc Ref X203481

Kerrick Hippo 2001 hot water pressure washer.
Model: Hippo.
Serial number: 224451.
Manufactured: 09-2022.
Fuel: Diesel.
Voltage: 400V.
Frequency: 50Hz.
Ampere at 400V: 13.5A.
Max pressure: 200 bar.
Flow rate: 15 l/m.
Max temperature: 0-100 degrees C.
Temperature at bar: 0-200 degrees C.
Weight: 160kg.
Insulation: IPX 5.
Noise level: 101 dB LWA.
Diesel-fired burner.
High pressure hose with trigger gun included.
Chassis mounted on wheels.
Includes Partial 20L jug of Tergo Powerwash fluid.
Washer is dirty but works normally.

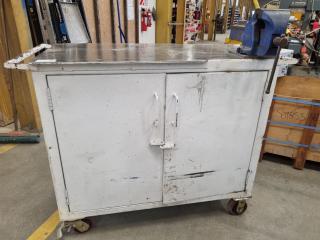

Heavy Steel Mobile Workbench Cabinet Trolley w/ Vice

Skylarc Ref Z203951

Heavy Steel Mobile Workbench Cabinet Trolley w/ Vice.
All welded steel construction.
2.5mm stainless steel top surface 1210x680mm.
Record/Irwin No.6 benchtop vice attached.
2x inner heavy duty steel drawers each with inner dimensions of approx 550x400x150mm.
Steel doors that can be locked with a padlock (lock not included).
125mm diameter, 50mm wide heavy duty wheels.
A very sturdy heavy duty mobile workbench trolley.

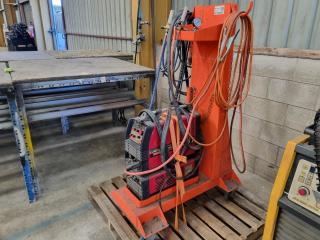

Lincoln Electric Invertec V270-T Pulse Welder w/ Cooler & Steel Trolley

Skylarc Ref H203907

Lincoln Electric Invertec V270-T Pulse Welder w/ Cooler & Steel Trolley
Lincoln Electric Cool Arc 20 Water cooler.
Lincoln Electric Invertec V270-TP MIG welder.
Made in Italy.
3-phase.
Includes Orange painted heavy steel trolley with reel storage and gas cylinder holder.
Welding cables and torch included.
Argon regulator.
Trolley mounted on wheels.

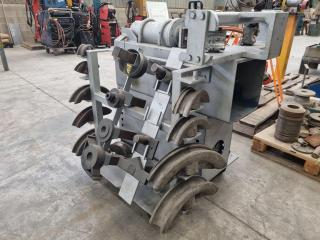

Heavy Steel Hydraulic Pipe Bender Trolley

Skylarc Ref V203973

Heavy Steel Hydraulic Pipe Bender Trolley.
Unknown manufacturer..
3-phase 2m16A 4-pin power plug.
See photos for details on included attachments.
Heavy steel mobile frame on castors.

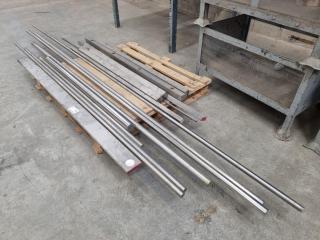

Pallet of Assorted Stainless Steel Lengths

Skylarc Ref Q203942

Pallet of Assorted Stainless Steel Lengths.
All lengths are solid, no hollow tubes, etc.
Stainless grades are unknown.
Includes:
- 1765x100x20mm
- 1750x50x25mm
- 1300mm length, 60mm diameter.
- 2x 40mm diameter in lengths of 2450mm and 2890mm.
- 38mm diameter, 3090mm length.
- 35mm diameter, 2275mm length.
- 2x 30mm diameter, 2500mm and 3430mm lengths
- 25mm diameter, 1600mm length.
- 12x12x2000mm
- 4x 50x50mm in lengths from 1200mm to 1500mm. These have holes drilled into them, see photos.

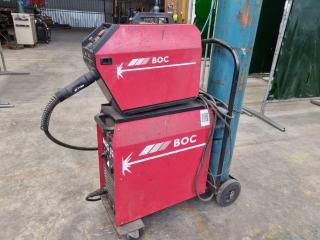

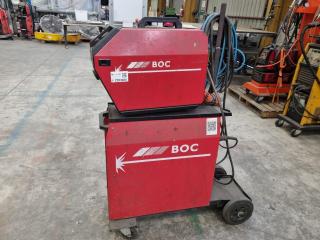

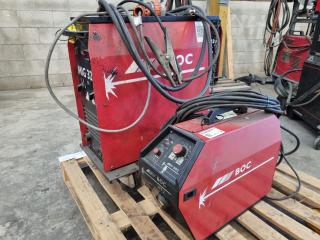

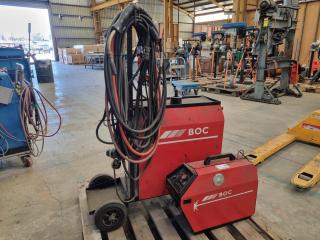

BOC MIG 320R Remote Welder with WF2 Wire Feeder

Skylarc Ref Z203925

BOC MIG 320R welding machine.
Model MIG BOC 320A Remote.
Manufactured in Finland.
Welding output 40A/16V to 320A/30V.
Maximum welding current 320A at 50% duty cycle.
Three-phase 415V input.
T20A fuse protection.
Power factor 0.95.
IP23C rated enclosure.
Maximum pressure 500 kPa.
WF2 wire feeder included.
Wire feeder model WF2 with 400A capacity at 40% duty cycle.
Wire feeder 30V AC input.
P1 100W wire drive motor.
MIG torch included with welding leads.
Mounted on wheels.

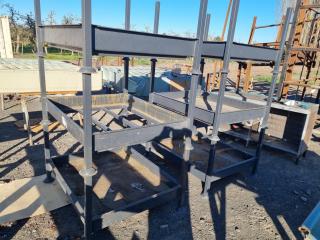

6x Large Heavy Duty Steel Stacking Stillages

Skylarc Ref S203918

6x Large Heavy Duty Steel Stacking Stillages.
Each is approx 1450x1150x840mm.
50x50mm box steel verticals with 5mm thick heavy steel horizontal framing, see photos.
Inner wall heights approx 150mm.
Five units have deteriorated MDF boards installed which the buyer can easily replace. The six steel frames themselves are in Very Good condition overall

BOC MIG 320R Remote Welder with WF2 Wire Feeder

Skylarc Ref K203910

BOC MIG 320R welding machine.
Model MIG BOC 320A Remote.
Manufactured in Finland.
Welding output 40A/16V to 320A/30V.
Maximum welding current 320A at 50% duty cycle.
Three-phase 415V input.
T20A fuse protection.
Power factor 0.95.
IP23C rated enclosure.
Maximum pressure 500 kPa.
WF2 wire feeder included.
Wire feeder model WF2 with 400A capacity at 40% duty cycle.
Wire feeder 30V AC input.
P1 100W wire drive motor.
MIG torch included with welding leads.
Mounted on wheels.

BOC MIG 320R Remote Welder with WF2 Wire Feeder

Skylarc Ref J203909

BOC MIG 320R welding machine.
Model MIG BOC 320A Remote.
Manufactured in Finland.
Welding output 40A/16V to 320A/30V.
Maximum welding current 320A at 50% duty cycle.
Three-phase 415V input.
T20A fuse protection.
Power factor 0.95.
IP23C rated enclosure.
Maximum pressure 500 kPa.
WF2 wire feeder included.
Wire feeder model WF2 with 400A capacity at 40% duty cycle.
Wire feeder 30V AC input.
P1 100W wire drive motor.
MIG torch included with welding leads.
Mounted on wheels.

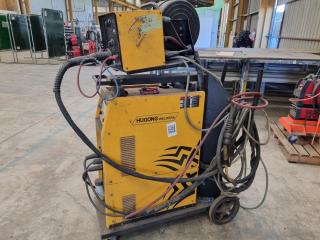

Hugong Welders MIG/MAG Welder with Wire Feed and Water Tank

Skylarc Ref I203908

Hugong Welders MIG/MAG welding machine mounted on mobile cart with integrated wire feeder and high-frequency water cooling system.
Super Matrix 400 Pulse control unit.
WF-30M inverter gas shielded wire feed setting.
WR-82 high-frequency water tank with circulatory cooling.
Rated input voltage: 1-220V.
Input power: 350W.
Cooled water volume: 10.8L.
Drainage capacity: 9L/min.
Max pressure: 35 PSi.
Wire feed speed: 1.0-24mm/min.
Wire size: 0.8-1.6mm diameter.
Working voltage: DC 24V.
Includes welding torch with connecting cables.
Mounted on wheeled base.

BOC MIG 320R Remote Welder with WF2 Wire Feeder

Skylarc Ref A203770

BOC MIG 320R welding machine.
Model MIG BOC 320A Remote.
Manufactured in Finland.
Welding output 40A/16V to 320A/30V.
Maximum welding current 320A at 50% duty cycle.
Three-phase 415V input.
T20A fuse protection.
Power factor 0.95.
IP23C rated enclosure.
Maximum pressure 500 kPa.
WF2 wire feeder included.
Wire feeder model WF2 with 400A capacity at 40% duty cycle.
Wire feeder 30V AC input.
P1 100W wire drive motor.
MIG torch included with welding leads.
Mounted on wheels.
NOTE that the gas bottle seen on trolley is NOT included.

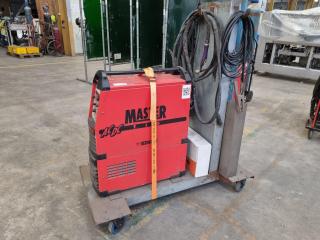

Kemppi Mastertig AC/DC 2500W Welding Machine w/ Trolley

Skylarc Ref Z203769

Kemppi Mastertig AC/DC 2500W welding machine.
Model: MASTERTIG AC/DC 2500W.
Manufactured in Finland.
AC/DC capability for TIG welding.
Power output: 2500W.
Input voltage options: 230V, 400V, 460V.
Includes control panel with Mastertig ACDC Pulse settings.
Features spot weld, MMA, and TIG HF contact modes.
Adjustable frequ
Mounted on included heavy duty steel mobile trolley with gas bottle holder..
Included: Welding torch with cable, ground cable with clamp, power cable with orange industrial connector rated 32A at 500V.
NOTE that the gas bottle seen in photos is NOT included.

Xcel-Arc TIG315PAC/DC Welding Machine

Skylarc Ref V203583

Xcel-Arc TIG315PAC/DC welding inverter.
Model TIG315PAC/DC.
AC/DC TIG welding capability.
Water cooling system with water output connection.
Built-in TIG inverter.
Welding trolley with wheels.
Welding torch and cables included.
Torch head with gas connector.
Red gas cylinder a
Water cooling hoses.
16A 4-pin 3-phase plug.
NOTE that the gas bottle seen in the photos is NOT included.

Hitachi 500kg Electric Chain Hoist

Skylarc Ref J203571

Hitachi 500kg Electric Chain Hoist.
Made in Japan in 2001.
6.3mm chain size.
3-metre lift.
16A 4-pin 3-phase plug.

Hitachi 500kg Electric Chain Hoist

Skylarc Ref I203414

Hitachi 500kg Electric Chain Hoist.
Made in Japan in 2004.
6000mm lift.
20A 4-pin 3-phase plug.
Certification tag good till 02/2027.
Includes original user manual.
Operates normally according to workshop staff.

Assorted Bearings, Pneumatics, Fastening Hardware, & More

Skylarc Ref Z203873

Large Lot of Bearings, Pneumatics, Fastening Hardware, & More.
One pallet and one crate of hundreds of as new bearing is in wide range of sizes and types, as well as more pneumatic hardware, fasting hardware like circuits, and other industrial related parts.
All are as new leftover workshop parts stock.

Heavy Steel Welding Workbench

Skylarc Ref T203477

Heavy Steel Welding Workbench.
16mm steel plate top plus a loose 5mm aluminum incumbent sheet overtop.
Heavy box and angle steel frame.
A 10mm air hose line with blowing gun attached underneath.

Heavy Steel Workshop Welding Workbench Table

Skylarc Ref W205118

Heavy Steel Workshop Welding Workbench Table.
Heavy y box and angle steel frame.
Top work surface is 12mm thick plate steel with a 6mm thick aluminum plate overtop.
NOTE that all other items seen near and on workbench are NOT included.

Heavy Steel Workshop Welding Workbench Table

Skylarc Ref C205124

Heavy Steel Workshop Welding Workbench Table.
Heavy box and angle steel frame.
Top work surface is 12mm thick plate steel with a 6mm thick aluminum plate overtop plus a 18mm thick.plywood sheet overtop the aluminum.
NOTE that all other items seen near and on and under the workbench are NOT included.

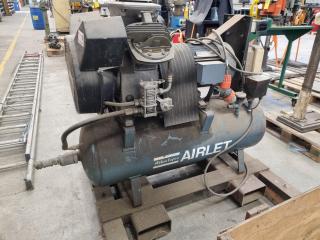

Atlas Copco 3-Phase Air Compressor

Skylarc Ref D203955

Atlas Copco 3-Phase Air Compressor.
Model Airlet LE8
35A 4-pin plug.
5.5kw motor.
10 bar max pressure.
Dusty surfaces.

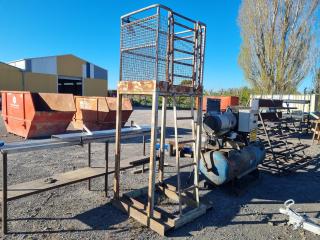

Elevated Steel Platform

Skylarc Ref R203917

Elevated Steel Platform.
Platform floor height above ground approx 1850mm.
Heavy duty welded steel frame with access ladder and latching safety access door.
Some surface rusting and dents to safety wire, but otherwise a very sturdy unit.

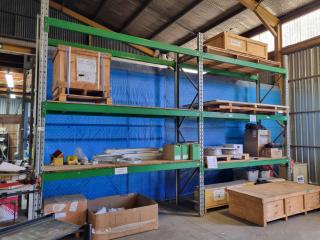

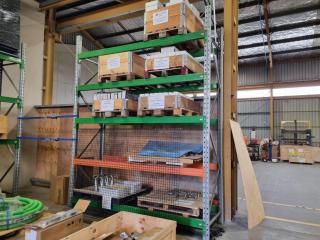

Pallet Racking Assembly

Skylarc Ref O203784

Pallet Racking Assembly.
Includes the following components:
- 2x galvanized steel vertical frames each 900x95x3660mm.
- 8x green horizontal beams each 2750x60x115mm.
- 2x Orange horizontal beams each 2750x50x110mm.

Green beams have labels indicating 2300kg weight capacity rating per green pair.
NOTE auction is for pallet racking only, all other items seen near and on racking are NOT included.

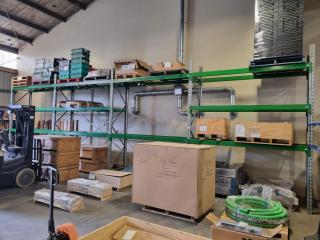

Pallet Racking Assembly

Skylarc Ref N203783

Pallet Racking Assembly.
Includes the following components:
- 5x galvanized steel vertical frames each 900x95x3660mm.
- 22x green horizontal beams each 2750x60x115mm.

Green beams have labels indicating 2300kg weight capacity rating per green pair.
NOTE auction is for pallet racking only, all other items seen near and on racking are NOT included.
The racking has been disssembled and is stacked on a pallet ready for buyer collection, see last photo

Pallet Racking Assembly

Skylarc Ref M203782

Pallet Racking Assembly.
Includes the following components:
- 3x galvanized steel vertical frames each 900x95x3660mm.
- 12x green horizontal beams each 2750x60x115mm.

Green beams have labels indicating 2300kg weight capacity rating per green pair.
NOTE auction is for pallet racking only, all other items seen near and on racking are NOT included.

Pallet Racking Assembly Components

Skylarc Ref F203749

Pallet Racking Assembly Components.
Includes:
- 3x galvanized steel vertical frames each 900x85x3665mm.
- 2x Orange horizontal beams each approx 2730x55x90mm.
- 6x Orange horizontal beams each 2730x50x110mm.
- 12x Orange horizontal beams each 3645x50x160mm.
- 15x beam Locking pins

Hebco 3-Phase Pedestal Grinder

Skylarc Ref R203553

Hebco 3-Phase Pedestal Grinder.
Made in Australia by H.E. Brehaut Ltd.
Age unknown.
Uses 300mm diameter grinding wheels.
3-phase 4-pin 16A plug.

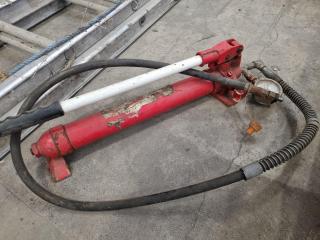

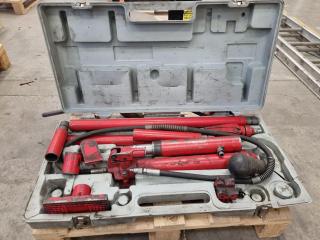

Hydraulic Porta Power Jack Set

Skylarc Ref L203989

Hydraulic Porta Power Jack Set.
Unknown brand and model.
Hydraulic Cylinder approx 400mm long, 55mm diameter.
See photos for included accessories and attachments.
Plastic case has broken hinge and many large cracks.

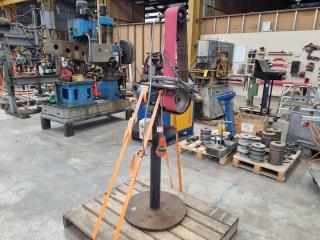

Industrial Vertical Belt Sander

Skylarc Ref E203982

Industrial Vertical Belt Sander.
Unknown manufacturer and model.
16A, 500V 4-pin 3-phase plug.
100mm Sanding belt width.
Height of sanding surface from table is approx 440mm.
Small work table 270x130mm.
Heavy steel weighted base plate 535mm diameter, 20mm thick.

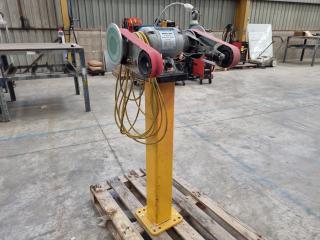

Linishall Bench Grinder & 2x Belt Sanding Attachments

Skylarc Ref D203981

Linishall Industrial Bench Grinder w/ Belt Sanding Attachments.
Model.No.BG8.
Single phase.
Two 50mm wide, 400mm long Belt sanding/Grinding arms attached, see photos.
Mounted on a heavy steel 925mm tall stand. Note that stand requires bolting to floor.

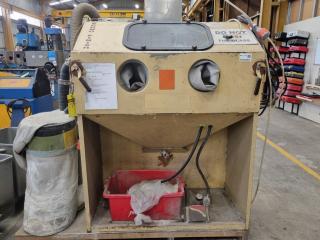

Industrial Sand Blasting Cabinet by Empire

Skylarc Ref W203974

Industrial Sand Blasting Cabinet.
Empire Econo Finish branded, specific model number unknown.
Inner blasting cabinet dimensions are approx 1215x600x590mm.
3x Power plugs attached, one single phase 10A and two 3-phase 20A,
Shows heavy usage and wear.

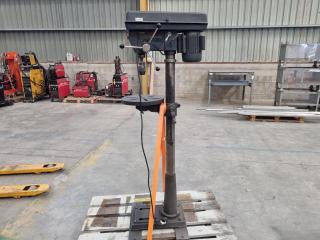

Ryobi Pedestal Drill Press DP263

Skylarc Ref P203941

Ryobi Pedestal Drill Press model DP263.
16mm Keyless chuck.
315mm diameter drill table.
10A single phase plug.
16 speeds.

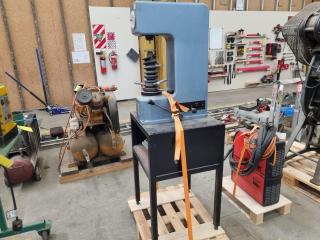

Eseway Hardness Tester

Skylarc Ref O203940

Eseway Hardness Tester.
Type No.PR.
Made in England. Age unknown.
Includes 530x570x850mm steel stand.
Includes Rahn branded granite block 305x305x83mm.
Includes 3x manuals.
Includes cover.
Includes 285x210x85mm wood case with assorted tester attachments, see photos.
Other items seen in photos are not included.

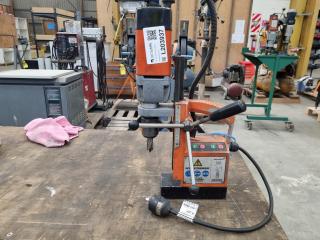

Alfra Rotabest 32RQ Magnetic Drill

Skylarc Ref L203937

Alfra Rotabest 32RQ Magnetic Drill.
Made in Germany in 2004.
10A single phase plug.
12mm to 32mm diameter bit capacity.
Max Cutting depth 35mm.

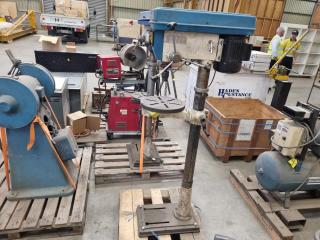

12-Speed Single Phase Drill Press

Skylarc Ref H203933

12-Speed Single Phase Drill Press.
Unknown manufacturer and model.
16mm keyed chuck, key is missing.
310mm diameter drill table.
10A single phase plug.

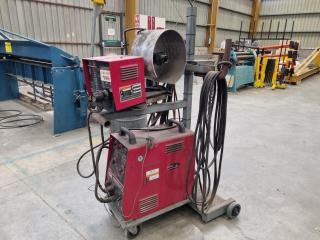

Lincoln Electric Invertec STT II Multi Process Welder

Skylarc Ref D203929

Lincoln Electric Invertec STT II Multi Process Welder w/ Feeder & Trolley.
Wire feeder model LN-742.
3-phase.
Includes heavy steel welding trolley that can accommodate 2x gas bottles.
Includes Cables, see photos.
Dusty from Workshop usage.

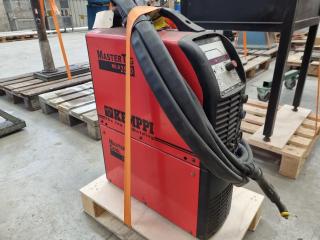

Kemppi MasterTig MLS2500 Welder & MasterCool 10

Skylarc Ref C203928

Kemppi MasterTig MLS2500 Welder with MasterCool 10 attachment.
3-phase 4-pin 32A plug.
Includes TIG cable.

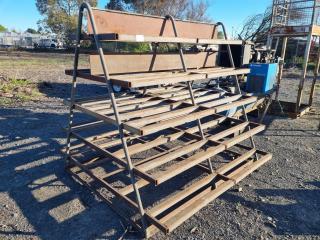

Double Sided Heavy Duty Steel Storage Rack

Skylarc Ref W203922

Double Sided Heavy Duty Steel Storage Rack.
35mm diameter steel tube A-Frame with welded box steel shelves that get narrower at each level.
Sturdy multi purpose unit.

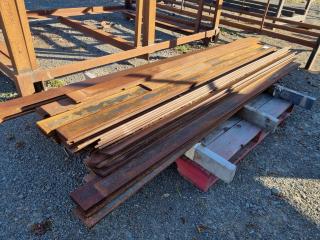

Pallet of 100x8mm Steel Flat Bars

Skylarc Ref Q203916

Pallet of 100x8mm Steel Flat Bars.
About 45 bars with 100x8mm profiles. Lengths vary from 2310mm to 2710mm.
Steel grade/type is unknown.
Unused leftover workshop materials stock that has unfortunately been left out in the weather for some time as lower layers have flaking rust corrosion occurring, see photos.

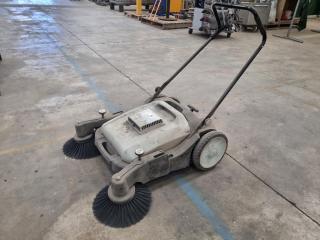

Bar Walk Behind Push Floor Sweeper

Skylarc Ref Y203794

Walk Behind Push Floor Sweeper by Bar.
500mm wide inner sweeping brushes. Two external rotating brush wheels covering approx 900mm width.
Manual Push powered.
Dusty from Workshop usage, otherwise Very Good condition. Functions normally

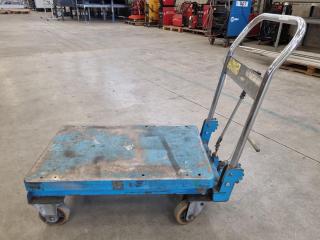

Adjustable Height Platform Trolley

Skylarc Ref W203792

Adjustable Height Platform Trolley.
Unknown manufacturer/model.
Platform is 805x500mm and height adjustable from approx 310mm to 910mm.
Hydraulic foot operated pump.
Max weight capacity is unknown.
125mm diameter, 40mm wide wheels.

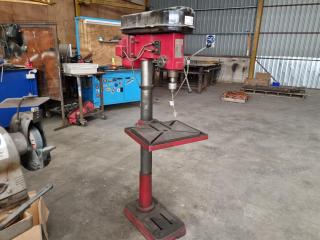

Frejoth Single Phase Drill Press

Skylarc Ref X203767

Frejoth Single Phase Drill Press.
Model No.TT22
Made in Taiwan in 1995.
16mm keyed chuck, key is missing.
470x410mm drill table.
Single phase 10A plug.

Mobile Steel Workbench w/ Vice

Skylarc Ref T203763

Mobile Steel Workbench w/ Vice.
60mm diameter steel tube legs, welded angle steel bracing.
125mm diameter wheels.
2.5mm steel sheet top work surface 1000mm above floor.
Lower sheet steel shelf.
Middle wood board shelf.
Unbranded England made benchtop vice with 130mm wide jaws.
Rear upper back panel with box steel frame and plywood surface for hanging tools etc.
4-plug 10A powerboard mounted in one corner.
Sturdy mobile workbench.

Pallet Racking Assembly Components

Skylarc Ref D203747

Pallet Racking Assembly Components.
Includes:
- 2x Galvanized steel vertical frames each 900x95x3660mm.
- 6x green horizontal beams each approx 2740x60x115mm.

NOTE that this auction includes the above listed components ONLY. The blue beam pallet Racking seen in some of the photos that this green bundle is on top of is NOT included! See our other listing for the blue Racking.

Pallet Racking Assembly Components

Skylarc Ref C203746

Pallet Racking Assembly Components.
Includes:
- 3x Vertical frames each 900x90x3660mm.
- 6x Orange horizontal beams each approx 2740x50x120mm.

Self Centering Vice

Skylarc Ref B205071

125mm jaws
2 sets of additional jaws
150mm max opening
No handle

Swivel Milling Angle Plate

Skylarc Ref D205073

Criterion 10' x 7' swivel angle plate

Pallet Racking Assembly

Skylarc Ref R203891

Pallet Racking Assembly.
Includes the following components:
- 3x 915x80x2440mm blue vertical frames.
- 16x 2745×55x90mm Orange horizontal beams
- 8x MDF Shelving boards.

NOTE that the other items seen on and near the Shelving Assembly are NOT included.

Gardner Denver V-VTN 26 Vacuum Pump

Skylarc Ref G203880

Gardner Denver V-VTN 26 (02) vacuum pump.
Manufactured in Germany.
Serial number SC10292871001.
Rating 150.00 / 150.00 mbar (abs).
Pump capacity 27.0 / 32.0 m³/h.
Electrical specifications D/Y 200-255/346-440 V ±5% 3.6/2.1A 50Hz or D/Y 200-290/346-500 V ±5% 4.2/2.4A 60Hz.
Rotation speed 1420 / 1700 rpm at 100% load.
Power rating 0.75 / 0.90 kW.
EN 60034 compliance.
Insulation class F.
IP protection rating 55.
Dusty from open storage.

Gardner Denver V-VTN 26 Vacuum Pump

Skylarc Ref F203879

Gardner Denver V-VTN 26 (02) vacuum pump.
Manufactured in Germany.
Rating 150.00 / 150.00 mbar (abs).
Pump capacity 27.0 / 32.0 m³/h.
Electrical specifications D/Y 200-255/346-440 V ±5% 3.6/2.1A 50Hz or D/Y 200-290/346-500 V ±5% 4.2/2.4A 60Hz.
Rotation speed 1420 / 1700 rpm at 100% load.
Power rating 0.75 / 0.90 kW.
EN 60034 compliance.
Insulation class F.
IP protection rating 55.
Dusty from open storage.

Gardner Denver V-VTN 26 Vacuum Pump

Skylarc Ref E203878

Gardner Denver V-VTN 26 (02) vacuum pump.
Manufactured in Germany.
Rating 150.00 / 150.00 mbar (abs).
Pump capacity 27.0 / 32.0 m³/h.
Electrical specifications D/Y 200-255/346-440 V ±5% 3.6/2.1A 50Hz or D/Y 200-290/346-500 V ±5% 4.2/2.4A 60Hz.
Rotation speed 1420 / 1700 rpm at 100% load.
Power rating 0.75 / 0.90 kW.
EN 60034 compliance.
Insulation class F.
IP protection rating 55.
Dusty from open storage.

Rittal Steel Enclosure 600x760x210mm, As New

Skylarc Ref D203851

Rittal Steel Enclosure.
Cat No.AE 1076.500
600x760x210mm size.
As new never installed workshop parts stock.

Schneider Electric Altivar 930 ATV930U22N4 AC Speed Drive

Skylarc Ref O203836

Model ATV930U22N4
Schneider Electric Altivar Process AC speed drive
2.2kW 3HP rated power
380-480V 3-phase input
0-380-480V 3-phase output
50/60Hz input frequency
0-599Hz output frequency
4.3A maximum input current
5.6A maximum output current
Internal motor overload protection Class 10
IP21 rating
Type 1 certification
Green carry case included
Operating control panel with LCD display included
Manual documentation included
Made in Indonesia
Weight 6.4kg
As new unused leftover workshop parts stock.
See our other listings for more of these units.

Schneider Electric Altivar 930 ATV930U22N4 AC Speed Drive

Skylarc Ref N203835

Model ATV930U22N4
Schneider Electric Altivar Process AC speed drive
2.2kW 3HP rated power
380-480V 3-phase input
0-380-480V 3-phase output
50/60Hz input frequency
0-599Hz output frequency
4.3A maximum input current
5.6A maximum output current
Internal motor overload protection Class 10
IP21 rating
Type 1 certification
Green carry case included
Operating control panel with LCD display included
Manual documentation included
Made in Indonesia
Weight 6.4kg
As new unused leftover workshop parts stock.
See our other listings for more of these units.

Schneider Electric Altivar 930 ATV930U22N4 AC Speed Drive

Skylarc Ref M203834

Model ATV930U22N4
Schneider Electric Altivar Process AC speed drive
2.2kW 3HP rated power
380-480V 3-phase input
0-380-480V 3-phase output
50/60Hz input frequency
0-599Hz output frequency
4.3A maximum input current
5.6A maximum output current
Internal motor overload protection Class 10
IP21 rating
Type 1 certification
Green carry case included
Operating control panel with LCD display included
Manual documentation included
Made in Indonesia
Weight 6.4kg
As new unused leftover workshop parts stock.
See our other listings for more of these units.

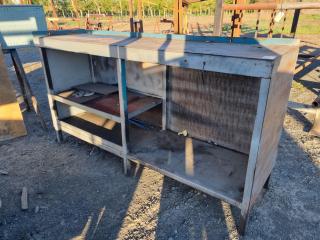

Steel Workshop Workbench

Skylarc Ref X203923

Steel Workshop Workbench.
Welded box steel frame with sheet steel side panels.
3mm steel sheet top work surface.
One lower rifle shelf of laminated MDF.
Bottom inner shelves are sheet steel.
Sturdy heavy duty Workbench.

2-Leg Lifting Chain Assembly, 4250kg Max Capacity

Skylarc Ref Z203405

2-Leg Lifting Chain Assembly.
Single Leg Capacity 2500kg.
2-leg capacity 3550kg and 4250kg.
8mm chain size.
2200mm chain length.
Certification tag good till 02/2027.

2-Leg Lifting Chain Assembly, 4250kg Max Capacity

Skylarc Ref A203406

2-Leg Lifting Chain Assembly.
Single Leg Capacity 2500kg.
2-leg capacity 3550kg and 4250kg.
8mm chain size.
2500mm chain length.
Certification tag good till 02/2027.

2-Leg Lifting Chain Assembly, 5350kg Max Capacity

Skylarc Ref B203407

2-Leg Lifting Chain Assembly.
Single Leg Capacity 3150kg.
2-leg capacity 4250kg and 5350kg.
10mm chain size.
2900mm chain length.
Certification tag good till 02/2027.

4-Leg Lifting Chain Assembly, 4000kg Max Capacity

Skylarc Ref C203408

4-Leg Lifting Chain Assembly.
Single Leg Capacity 2000kg.
Multi leg capacity 4000kg
8mm chain size.
1400mm chain length.
Certification tag good till 02/2027.

Quick A2/KF Knurling Tool Kit

Skylarc Ref S203424

Quick A2/KF Knurling Tool Kit.
Made in Austria.
25x25x110mm mounting shank.
Shows light usage.

3.8-Metre Wall Mounted Swing Crane

Skylarc Ref P203447

3.8-Metre Wall Mounted Swing Crane.
Swing arm approx 3.8-metres long and approx 3050mm above floor.
A yellow wheeled chain hoist trolley attached to Swing arm.
100x75mm box steel vertical beam that needs welding to a wall for support.
NOTE that this assembly is custom made so its weight capacity is unknown.
The assembly will be decommissioned and disassembled before buyer pickup.

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref P203863

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref O203862

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref N203861

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref M203860

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref L203859

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref K203858

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref J203857

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref I203856

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref H203855

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref G203854

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref F203853

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

Allen Bradley IEC Enclosed Disconnect Load Switch 194E

Skylarc Ref E203852

Allen Bradley IEC Enclosed Disconnect Load Switch.
Cat No.194E-KA20X-P22-PE-6.
IP66 weather rated.
Enclosure measures 200x190x300mn.
New unused leftover workshop parts stock.
See our other listings for more of these new units.

https://www.rockwellautomation.com/en-us/products/details.194e-ka20x-p22-pe-6.html

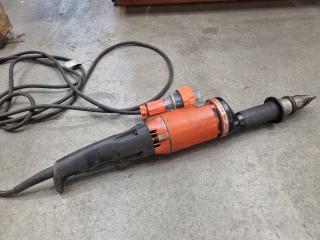

Fein MShyo 852-4a Industrial Straight Die Grinder

Skylarc Ref B203953

Fein MShyo 852-4a Industrial Straight Die Grinder.
Made in Germany.
Manufacture date 03/2011.
5-pin 16A 500V plug.
Polishing wheel spiral

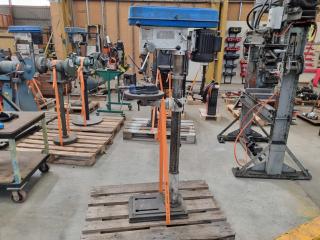

Herbert MetalMaster Single Phase Drill Press

Skylarc Ref R203943

Herbert MetalMaster Single Phase Drill Press.
Unknown model number.
BIG branded 16mm keyed chuck with key
310mm diameter drill table.
Drill vice with 100mm wide jaws.
10A single phase plug.

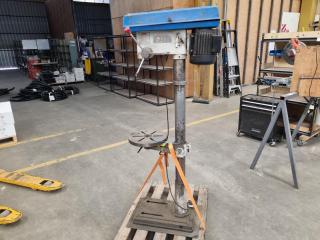

Herbert MetalMaster Single Phase Drill Press, missing parts

Skylarc Ref G203932

Herbert MetalMaster Single Phase Drill Press.
Unknown model number.
310mm diameter drill table.
10A single phase plug.
NOTE that drill chuck is missing.
NOTE that all drive belts are missing.

Victoria Indexing Head

Skylarc Ref N205057

Victoria Universal Dividing Head
160mm three jaw chuck
Tailstock

5.0-Metre Wall Mounted Swing Crane

Skylarc Ref R203449

5.0-Metre Wall Mounted Swing Crane.
Approx 5.0-metre long double hinged swing arm approx 2400mm above floor.
75x75mm box steel vertical beam.
Assembly requires welding to a wall.
NOTE that the assembly is custom made so its max weight capacity is unknown.
This assembly will be detached and disassembled before buyer pickup

Long Workshop Workbench

Skylarc Ref P203473

Long Workshop Workbench.
50x50mm welded angle steel frame.
MDF board top and lower surfaces.
Main work surface 925mm above floor.
Upper rear 880mm tall plywood backing board for adding hooks, etc.
NOTE that the other items seen on and near workbench are NOT included.

4-Metre Steel & Wood Workbench

Skylarc Ref Y203482

4-Metre Steel & Wood Workbench.
Thick wood board top.
Welded angle and box steel frame.
Lower steel door cabinet on right side.
Items seen on and within Workbench are NOT included.

ProSoft Industrial Cellular Gateway ICX, New

Skylarc Ref R203839

ProSoft Industrial Cellular Gateway ICX.
Part No.ICX35-HWC-E.
As new leftover workshop parts stock.

https://www.prosoft-technology.com/Products/Industrial-Wireless/Intelligent-Cellular/Industrial-Cellular-Gateway-ICX35-HWC

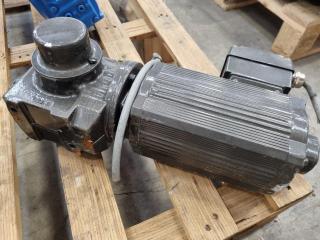

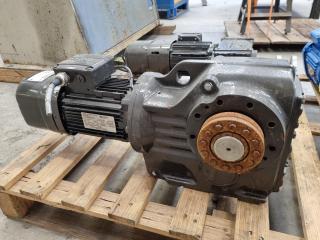

SEW-EURODRIVE geared motor assembly

Skylarc Ref S203996

SEW-EURODRIVE geared motor assembly.
Model KH77 DRN80M4/ES7S.
Manufactured in New Zealand.
Electric motor coupled to helical geared reducer.
Motor rated 0.75 kW at 1440/1550 rpm.
Gear ratio options 3.05/1.75 or 2.70/1.56.
Output shaft with flanged coupling.
Voltage 220-230 delta/380-400Y or 254-266 delta/440-480Y.
Power factor 0.74 and 0.70.
Thermistor protection.
Design NEMA C.

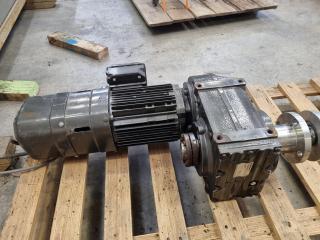

SEW-EURODRIVE motor and gearbox assembly

Skylarc Ref Q203994

SEW-EURODRIVE motor and gearbox assembly.
Model FH57B DRN80M4/BE1HF/ES7S.
Motor: 0.75 kW.
Operating voltage 220-230V delta or 380-400V three-phase.
Alternative voltage 254-266V delta or 440-460V three-phase.
Motor speed 1440 rpm at 50 Hz or 1751 rpm at 60 Hz.
Gearbox ratio 1:58.97.
Output torque rating Nm 295/240.
Design NEMA C.
Casting thermal class 155(F).
Service factor 1.0.
Bearing designation ML22.
CLP HC-460-NSF oil specification.
Operating temperature range -20 to +40 degrees Celsius.
Stainless steel output shaft flanges.

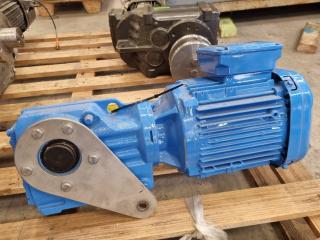

SEW-EURODRIVE helical gear motor

Skylarc Ref P203993

SEW-EURODRIVE helical gear motor.
Model: KA37 DRN90S4/AL.
Manufacturer: SEW-EURODRIVE, Auckland, New Zealand.
Input speed: 1455/120 rpm.
Output torque: 160 Nm maximum.
Gear ratio: 12.14.
Motor power: 1.1 kW S1.
Motor rated frequency: 50 Hz.
Motor voltage: 230/400V three-phase.
Motor efficiency class: IE3.
Cos φ: 0.73.
Thermal class: 155(F).
Motor weight: 30.041 kg.
Inverter duty VPWM.
Amps: 4.45/2.55.
Manufacture year: 2025.
Lubricant: CLP HC 32 synthetic oil 0.50 litre.
Operating temperature range: -40 to -10 degrees Celsius.
Serial number: 22.8552456601.0001.25.
Item has not been used. Dusty from storage.

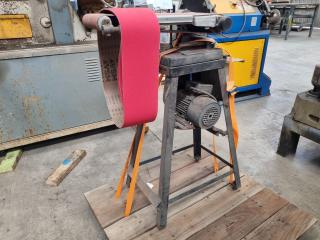

Industrial 570mm Belt Sander

Skylarc Ref G203984

Industrial 570mm Belt Sander.
Unknown manufacturer/model
150mm wide belt, 570mm long top length.
16A 500V 4-pin 3-phase plug.
Includes 3x new VSM branded polyester Sanding belts, all 80 grit, part No.XK870X.

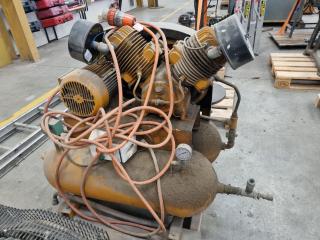

3-Phase Air Compressor

Skylarc Ref F203957

3-Phase Air Compressor.
No ID plate so specs are unknown.
Dual Air tanks.
30A 4-pin 3-phase plug.
Very dirty from Workshop usage.

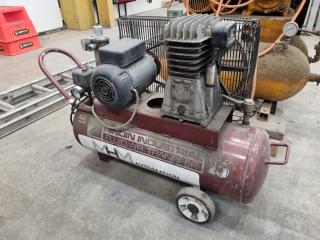

Hindin Industrial Single Phase Air Compressor

Skylarc Ref E203956

Hindin Industrial Single Phase Air Compressor.
Model 15
10A single phase plug.
Tank is dated 5/1997.
Tank capacity unknown.
Dusty surfaces.

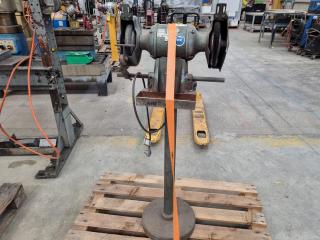

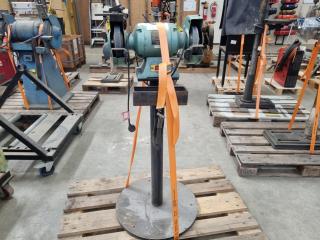

Bench Grinder on Stand

Skylarc Ref M203938

Bench Grinder on Stand.
Worn ID label says J.W.Ross branded. Model number unknown.
10A single phase plug.
Can accommodate wheels up to 180mm diameter.
Currently has 150mm diameter wheels installed.
Right side missing eye guard screen.
Mounted on a heavy steel stand 900mm tall.

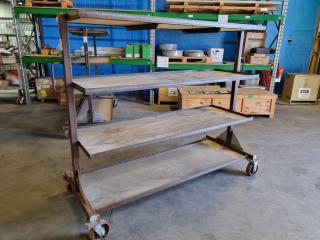

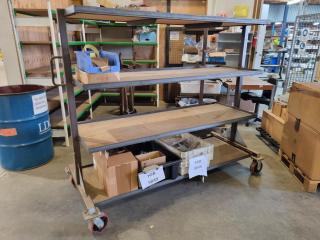

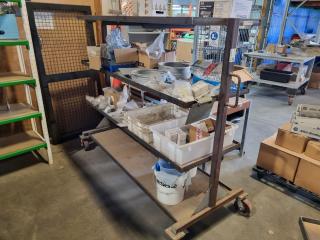

Heavy Duty Mobile Workshop Shelf Trolley

Skylarc Ref L203781

Heavy Duty Mobile Workshop Shelf Trolley.
Custom made from welded 50x50mm box steel for main frame and 40x40mm angle steel shelf frames.
Plywood Shelving boards are each 1760x610mm. Vertical distance between each shelf is approx 405mm.
Large 150mm diameter, 50mm wide wheels.
18mm diameter Rebar steel pull handles at each end.
Very sturdy heavy duty mobile shelving unit.
See our other listings for more of these units.

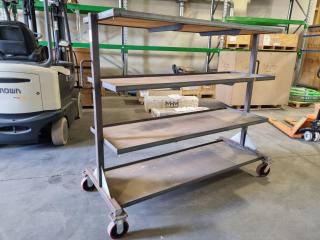

Heavy Duty Mobile Workshop Shelf Trolley

Skylarc Ref K203780

Heavy Duty Mobile Workshop Shelf Trolley.
Custom made from welded 50x50mm box steel for main frame and 40x40mm angle steel shelf frames.
Plywood Shelving boards are each 1760x610mm. Vertical distance between each shelf is approx 405mm.
Large 150mm diameter, 50mm wide wheels.
18mm diameter Rebar steel pull handles at each end.
Very sturdy heavy duty mobile shelving unit.
See our other listings for more of these units.

Heavy Duty Mobile Workshop Shelf Trolley

Skylarc Ref H203777

Heavy Duty Mobile Workshop Shelf Trolley.
Custom made from welded 50x50mm box steel for main frame and 40x40mm angle steel shelf frames.
Plywood Shelving boards are each 1760x610mm. Vertical distance between each shelf is approx 405mm.
Large 150mm diameter, 50mm wide wheels.
18mm diameter Rebar steel pull handles at each end.
Very sturdy heavy duty mobile shelving unit.
NOTE that items seen on trolley are NOT included.
See our other listings for more of these units.

Heavy Duty Mobile Workshop Shelf Trolley

Skylarc Ref G203776

Heavy Duty Mobile Workshop Shelf Trolley.
Custom made from welded 50x50mm box steel for main frame and 40x40mm angle steel shelf frames.
Plywood Shelving boards are each 1760x610mm. Vertical distance between each shelf is approx 405mm.
Large 150mm diameter, 50mm wide wheels.
18mm diameter Rebar steel pull handles at each end.
Very sturdy heavy duty mobile shelving unit.
NOTE that the items seen on the trolley are NOT included.
See our other listings for more of these units.

Mobile Rolling Access Stairs Platform

Skylarc Ref W203766

Mobile Rolling Access Stairs Platform.
Welded 40x40mm box steel frame.
90mm diameter wheels.
900mm wide steps.
Top platform 1800mm above floor.
Top tread steel plate platform area 920x790mm.
Some mild surface rust, otherwise sturdy mobile unit.

2x Large Drills w/ Morse Taper No.5 Shanks

Skylarc Ref Y203742

2x Large Drills both with Morse Taper No.5 Shanks.
- 2 3/4" drill with approx 250mm cutting depth.
- Smaller drill with no visible size markings, hand measured to approx 50mm diameter with approx cutting depth of 210mm.

Single Phase Bench Grinder w/ Stand

Skylarc Ref W203584

Single Phase Bench Grinder w/ Stand.
Unknown brand/model.
Can accommodate wheels up to 280mm diameter.
Mounted on a heavy steel stand 950mm tall.
Dirty from Workshop usage.

Bench Grinder on Stand

Skylarc Ref M203574

Bench Grinder on Stand.
Made in Australia by JW Ross & Sons
Model unknown as upper part of ID label is missing.
Can accommodate wheels up to 180mm diameter.
10A single phase plug.
Mounted on a heavy steel 975mm tall stand that will require bolting to a floor.

Heavy Steel Workshop Shelving Unit

Skylarc Ref S203554

Heavy Steel Workshop Shelving Unit.
Welded 50x25mm box steel and 40x40mm angle steel frame.
45mm thick wood boards Shelving.
Vertical space between each shelf level is approx 275mm.
A very heavy duty sturdy Workshop unit.

Hublast 500kg Chain Block

Skylarc Ref U203400

Hublast 500kg Chain Block.
3-metre length.
Certification tag good till 02/2027.

Beaver Block 1-Ton Chain Block

Skylarc Ref V203401

Beaver Block 1-Ton Chain Block.
6mm chain size.
3-metre chain length.
Certification tag good till 02/2027.

2-Ton Capacity Chain Block

Skylarc Ref W203402

2-Ton Capacity Chain Block.
ID plate is worn so brand and model unknown.
3-metre chain length.
Certification tag good till 02/2027

Milling Machine Vice

Skylarc Ref K205054

155mm jaws
130mm max opening
No handle

2 x ER40 Collet Chucks

Skylarc Ref A205070

2 x BT40 collet chucks (used on NT40 machine)
13 x ER40 collets

Large Lot of Radius Cutters

Skylarc Ref Q205086

Radius cutting end mills
23 total

Large Lot of Milling Cutters

Skylarc Ref S205088

Slot cutters
20 total
Etc

8 x Large End Mills

Skylarc Ref T205089

Metric and imperial sizes

8 x Large End Mills

Skylarc Ref U205090

Metric and imperial sizes

Dyco Single Phase Bandsaw

Skylarc Ref V205091

Dyco Bandsaw
400mm x 400mm tilting cast table
380mm throat
180mm max cut depth

14 x End Mills

Skylarc Ref W205092

Metric and imperial sizes
Assorted types
Largest 32mm

34 x End Mills

Skylarc Ref Y205094

Metric and imperial sizes
Assorted types
Largest 1 7/8"

8 x Large End Mills

Skylarc Ref A205096

Imperial sizes
Assorted types
Largest 1 3/4"

Large Heavy Steel Shelving Frame

Skylarc Ref D203435

Large Heavy Steel Shelving Frame.
100x50x5mm box welded box steel frame.
350mm vertical gap between each shelf level.
One level has 630mm wide 1.5mm steel panel dividers welded in place, see photos.
Heavy duty sturdy and large Shelving unit it.

3x Large Stillage Storage Frames

Skylarc Ref E203436

3x Large Stillage Storage Frames.
Each is approx 2600x2020x2320mm
Each has a steeply angled frame at rear for apparently holding panel materials or similar, see photos.
Rusty surfaces but still very heavy duty frames.
The bottom corners of the stillages may indicate they were designed to be Stackable but we did not verify that.

6-Metre Wall Mounted Swing Crane

Skylarc Ref N203445

6-Metre Wall Mounted Swing Crane.
Custom Workshop made assembly so max weight capacity is unknown!
6-metre pivoting arm.
Yellow wheeled chain hoist truck attached to arm.
Vertical beams is 150x100mm I-Beam estimated to be around 8-metres tall.
Bolted to side beams via two angle steel brackets.
Two bolts attached to floor.
NOTE that this assembly will be decommissioned and disassembled before pickup. Also NOTE that the two ling horizontal beams the angle steel brackets are bolted to are NOT included as they are welded to the building.

3.6-Metre Wall Mounted Swing Crane

Skylarc Ref O203446

3.6-Metre Wall Mounted Swing Crane.
Approx 3.6-metre swing arm approx 3100mm above floor.
100x75mm box steel vertical beam.
Wheeled chain hoist truck attached to arm.
Assembly requires welding to a wall.
NOTE that the assembly is custom made so its max weight capacity is unknown.
This assembly will be detached and disassembled before buyer pickup.

3.0-Metre Wall Mounted Swing Crane

Skylarc Ref Q203448

3.0-Metre Wall Mounted Swing Crane.
Approx 3.0-metre swing arm approx 3050mm above floor.
150x75mm box steel vertical beam.
Wheeled chain hoist truck attached to arm.
Assembly requires welding to a wall.
NOTE that the assembly is custom made so its max weight capacity is unknown.
This assembly will be detached and disassembled before buyer pickup.

Seco Branded Lathe Turning Tools & Boring Bar

Skylarc Ref S203450

Seco Branded Lathe Turning Tools & Boring Bar.
Includes the following Seco part numbers:
- Boring bar CNR0032S20, 4182315, 001, 250mm length.
- Turning tool CER2525M200, 4192913, 001, 150mm length.
- Turning tool DTGNR2020K16, 125mm length.

All show generally very light usage.

Ryobi 200mm Bench Grinder w/ Steel Pedestal Stand

Skylarc Ref N203471

Ryobi 200mm Bench Grinder w/ Steel Pedestal Stand.
Model No.HBG825A
200mm diameter grinding wheels.
Includes 950mm tall heavy steel stand.

Assorted End Mills, Drill Taps & More

Skylarc Ref Q205138

Assorted End Mills, Drill Taps & More.
See photos for types included.
Condition varies with each item.

Welded Steel Workshop Shelving Frame

Skylarc Ref L203885

Welded Steel Workshop Shelving Frame.
Custom made welded box and angle steel construction.
MDF board Shelves.
NOTE that the items seen on the Shelving are NOT included.

Pallet of Assorted Roller Chain

Skylarc Ref Y203872

Pallet of Assorted Roller Chain.
Full boxes and reels as well as loose off cuts.
Various sizes and types.
As new leftover workshop parts stock.

8x Hansen 1/2" Angle Expansion Valves VSB050C

Skylarc Ref U203868

8x Hansen 1/2" Angle Expansion Valves.
All are part No VSB050C.
As new leftover workshop parts stock.
Note that three boxes state that gaskets are missing from valves.
8x Valves in auction.

Stainless Steel Electrical Cabinet, New

Skylarc Ref S203840

Stainless Steel Electrical Cabinet.
Measures approx 610x600x305mm with and angle on one side, see photos
Access door is 590x370mm.
As new leftover workshop parts stock.

8-Metre 32A 3-Phase Power Extension Lead Cable

Skylarc Ref Y203924

8-Metre 32A 3-Phase Power Extension Lead Cable.

Workshop Workbench

Skylarc Ref B203901

Workshop Workbench.
Welded 50x25mm box steel frame with 12mm plywood top.
Includes 2x Wooden 2-drawer cabinets underneath, each small cabinet is approx 570xa555x420mm.

Industrial Metal Cutter Punch Press

Skylarc Ref V203999

Industrial Metal Cutter Punch Press.
Unknown manufacturer.
130mm diameter top with a curved approx 16mm wide cutter jaw.
See photos for further design/type details.

Vintage Metal Corner Cutter Press

Skylarc Ref U203998

Vintage Metal Corner Cutter Press.
Made in TeKuiti New Zealand by HWM Engineering Ltd. Age unknown.
Square cutter approx 62x62mm.
Material holding platform 235x235mm.
Foot operated, functions normally

Stainless Steel Mobile Bin Trolley

Skylarc Ref C203980

Stainless Steel Mobile Bin Trolley.
4x 150mm diameter white nylon wheels.
Interior Bin dimensions approx 640x625x520mm.
All stainless steel construction. Stainless steel grade unknown.
Heavy duty unit.
See our other listing for a second matching Trolley.

Stainless Steel Mobile Bin Trolley

Skylarc Ref B203979

Stainless Steel Mobile Bin Trolley.
3x 150mm diameter white and 1x black nylon wheels.
Interior Bin dimensions approx 640x625x520mm.
All stainless steel construction. Stainless steel grade unknown.
Heavy duty unit.
See our other listing for a second matching Trolley.

Small Heavy Duty Workbench w/ Hanging Wall

Skylarc Ref R203969

Small Heavy Duty Workbench with rear Hanging Wall for tools.
Main work surface is 4mm steel and is approx 850mm above floor.
1000mm high steel framed rear back board for hanging tools, etc.
60mm diameter steel tube bench legs with steel sheet sides.
Sturdy little workbench.

Heavy Duty Steel Shelving Assembly

Skylarc Ref P203967

Heavy Duty Steel Shelving Assembly.
All steel construction.
Three units bolted together with combined length of 3715mm.
Welded construction with 4x standard bolts holding each section to the other.
Heavy duty all steel Shelving.

Manual Bar Bender w/ Stand

Skylarc Ref A203952

Manual Bar Bender w/ Stand.
Unknown manufacturer and model.
75x75x75mm bending block.
Mounted on a heavy steel 1040mm tall stand.

Black & Decker 254mm Mitre Saw w/ Custom Steel Stand

Skylarc Ref W203948

Black & Decker 254mm Mitre Saw w/ Custom Steel Stand.
Saw model No.BES710-XE.
Includes a custom made steel sawhorse style stand with plywood rear guard wall.

Bench Grinder on Stand

Skylarc Ref N203939

Bench Grinder on Stand.
ID label is worn so unknown brand/model.
10A single phase plug.
Seems to be able to accommodate wheels up to about 180mm diameter.
Currently a 150mm grinding wheel installed on left, 180m diameter wire wheel on right.
Mounted on a heavy steel stand 880mm tall.
Eye guard screens are missing.
No table attachment for right side.

Champion SCR 100 Interact Control battery charger

Skylarc Ref E203930

Champion SCR Charger 100 Interact Control battery charger.
Model: CHP100-24-865T1-U
Serial: 9710144S
Manufacturer: GNB Technologies.
For use with Battery type: LA (Lead Acid)
Cells: 24
Input voltage: 208/240/416V, 3 phase, 50Hz
Input amperage: 34/30/17A
DC output voltage: 48V
DC output amperage maximum: 134A
Maximum AH: 865
Grey metal enclosure with integrated control panel.
SCR Charger 100 Interact Control intelligent power system.
Control monitor display with three function buttons.
32A 4-pin 3-phase power plug.
Previously used with an electric forklift that was disposed of.

Vintage Avery Type 307 Mechanical Platform Scale

Skylarc Ref I203778

Vintage Avery Type 307 Mechanical Platform Scale.
Made in England.
Max weight capacity 500 lbs.
Weighing platform 630x400mm and 180mm above floor.
Mounted on wheels.
Includes 5x weight bar blocks in varying sizes.
Overall very good condition for a vintage scale.
Scale is functional but accuracy not tested.

Corner Shelving Assembly

Skylarc Ref F203775

Corner Shelving Assembly.
450mm Shelving width.
4x 440x40x1805mm white vertical frames.
30x green horizontal beams with 25x40mm profile. Some beams are hooked to form corner connections, see photos.
MDF Shelving boards.
Buyer can dissemble for pickup.
NOTE that items seen on shelves are NOT included.

Mobile Aluninium Rolling Access Stairs Platform

Skylarc Ref U203764

Mobile Aluminum Rolling Access Stairs Platform.
Welded aluminum construction.
125mm diameter castors.
Platform height 1240mm above floor.
Platform area 700x550mm.
Would benefit from a pressure washer surface cleanup.

Lapp Kabel Olflex Multi Core 600V Electrical Cable Reel

Skylarc Ref P203759

Lapp Kabel Olflex Multi Core 600V Electrical Cable Reel.
Cable exterior marked with the following info.
Lapp Kabel Stuttgart Olflex Control TM P/N 281625.
16AWG (1.5mm²) / 25C (UL) TC-ER.
90C dry, 75C wet,
600V Oil Res I/II, E171371, or MTU Flexibg or WTTC 1000W 90C dry or AWM or c(UL) Control CIC/TC PVC/N FT4.
CSA AWM II A/B 90C 1000W FT4 LL94629 ROHS T28/01 16AWG.
Length remaining on spool is unknown. Thickness of spoiled cable on the spool is approx 140mm.

Olflex Control TM 4G1.5 Cable Reel

Skylarc Ref O203758

Olflex Control TM 4G1.5 control cable.
Part Number: LAPP-281604.
File Number: E171371.
AWG 16 conductor with 4 pairs.
0.21 inch PVC/nylon insulation.
0.047 inch PVC jacket.
TC-ER TFFN cores.
90°C dry rated, 75°C wet rated.
600V or WTTC 90°C dry, 1000V or MTW or DF rated.
1000V 105°C rated.
CSA CIC/TC FT4 certified.
AWM II A/B rated.
90°C 1000V FT4 rated.
Cable length unknown.
Includes rolled shorter length of sane cable top top of main spool.

Mitutoyo Metric Dial Bore Gauge 511-174

Skylarc Ref W203740

Mitutoyo Metric Dial Bore Gauge.
Code No.511-174 (2046S).
50-150mm range.
See photos for included accessories.
Plastic case.

Steel Workshop Shelving Unit

Skylarc Ref G203568

Steel Workshop Shelving Unit.
All bolted steel construction with MDF backboard.
24x Shelves are bolted on and can be adjusted by buyer.
Has been stored outside the past few weeks so the MDF backboard will need replacing! Otherwise the steel unit shows typical workshop.usage and wear.

300kg Magnetic Lifter

Skylarc Ref P203551

300kg Magnetic Lifter.
ID label worn so brand is unknown.
Model No.PMQZQ300
300kg max capacity.
Magnetic is functioning, see photo.
Not tested with weight attached.

2-Leg Lifting Cain Assembly, 3400kg Max Capacity

Skylarc Ref X203403

2-Leg Lifting Cain Assembly.
2000kg single leg capacity.
2800kg and 3400kg 2-leg capacity.
8mm chain.
2000mm chain lengths.
Certification tag good till 02/2027.

20x Custom.Made Heavy Steel Bollards Safety Barrier Poles

Skylarc Ref J203415

20x Custom.Made Heavy Steel Bollards Safety Barrier Poles.
Custom made from 60mm diameter, 4mm thick wall vertical pipes welded to 200x75mm and 240mm long channel steel heavy bases.
Each pole has two hooks welded to it to hold rope or other fencing or barrier materials.
16x units are 1070mm tall and 4x units are 1270mm tall.

Assorted Steel/Brass Magnetic Transfer Blocks

Skylarc Ref T203425

Assorted Steel/Brass Magnetic Transfer Blocks.
Three sets included.
- 2x rectangle Blocks each 98x55x43mm.
- 2x triangle Blocks each 50x50x28mm.
- 2x special.shaped blocks (see photos) measuring approx 59x28x19mm.

Large Heavy Steel Shelving Frame

Skylarc Ref C203434

Large Heavy Steel Shelving Frame.
Welded steel construction. 100x50mm box steel vertical corners. 75x50mm box steel horizontal framing. 60mm diameter pipe and 50x50mm box steel shelf frames.
Some surface rusting but still very heavy and sturdy large Shelving frame.

50mm Drill w/ No.4 Shank, as New

Skylarc Ref K203442

50mm diameter Drill w/ No.4 Morse Taper Shank,
StimZet branded.
370mm total length.
As new unused with original anti rust wrapper and box.

Somta 50mm H7 PAR MACH Reamer, as new

Skylarc Ref M203444

Somta 50mm H7 PAR MACH Reamer.
Part No.7115000.
HSS.
No.4 Morse Taper shank.
335mm total length.
Appears as new with plastic case.

Assorted Types of Reamers

Skylarc Ref M203470

Assorted Types of Reamers.
See photos for Types or Reamers included.
Sizes vary up to 2".
Condition varies greatly with each item.

Heavy Steel Welding Table Workbench

Skylarc Ref Q203474

Heavy Steel Welding Table Workbench.
16mm steel plate top with 5mm aluminum sheet loosely set over half the surface, see photos.
75x75mm and 35x35mm box steel frame.

Assorted Bahco 400mm & 300mm Hacksaw Blades

Skylarc Ref B205097

Assorted Bahco 400mm & 300mm Hacksaw Blades.
Includes:
- 6x Bahco No.321 SandFlex HSS Bi-Metal Blades, 400-32-6mm.
- 8x Bahco No.445 SandFlex HSS Bi-Metal Blades, 400-32-1.6mm.
- 6x Bahco No.317 High Speed Blades, 400-32-1.6mm.
- 2x Bahco No.649 Sandflex Bi-Metal Blades, 300-32mm.

All.are as new unused leftover factory Consumables stock..

4x Keyway Broaches, Imperial Sizes

Skylarc Ref E205100

4x Keyway Broaches.
Includes:
- Hassay Savage 7/8" VI Broach, 490mm length.
- Hassay Savage 7/16" IV broach, 344mm length.
- Hassay Savage 3/8" III broach, 304mm length
- DuMont 3/8" CHS broach, 300mm length.

6x Keyway Broaches, Metric Sizes

Skylarc Ref G205102

6x Keyway Broaches.
Includes:
- DuMont 10mm D-1 HS broach, 355mm length.
- Hassay Savage 10mm IV broach, 340mm length.
- Hassay Savage 8mm III broach, 305mm length
- Hassay Savage 5mm II broach, 180mm length.
- Hassay Savage 4mm II broach, 145mm length.
- Hassay Savage 3mm I broach, 135mm.length.

21x Assorted Lathe Turning Steel

Skylarc Ref H205103

21x Assorted Lathe Turning Steel.
Lengths from 110mm to 205mm.
Widths from 15mm to 35mm.
Condition varies with each unit, see photos.

Heavy Duty Workbench

Skylarc Ref X205119

Heavy Duty Workbench.
Welded heavy box and angle steel.frame
45mm thick wood board top surface.
NOTE that all other items seen under and on the workbench are NOT included.

Heavy Duty Workbench

Skylarc Ref Y205120

Heavy Duty Workbench.
Welded heavy box and angle steel.frame
45mm thick wood board top surface.
NOTE that all other items seen under and on the workbench are NOT included.

Heavy Duty Workbench

Skylarc Ref Z205121

Heavy Duty Workbench.
Welded heavy box and angle steel.frame
45mm thick wood board top surface.
NOTE that all other items seen under and on the workbench are NOT included.

Heavy Duty Workbench

Skylarc Ref A205122

Heavy Duty Workbench.
Welded heavy box and angle steel.frame
45mm thick wood board top surface.
NOTE that all other items seen under and on the workbench are NOT included.

Heavy Duty Workbench

Skylarc Ref B205123

Heavy Duty Workbench.
Welded heavy box and angle steel.frame
45mm thick wood board top surface.
NOTE that all other items seen under and on the workbench are NOT included.

Vintage Dyco Benchtop Drill Press

Skylarc Ref D205125

Vintage Dyco Benchtop Drill Press.
Age and model unknown.
13mm Jacobs keyed chuck with key.
260x260mm drill table.
10A single phase plug.
Old unit but operates, see video.

Ullrich Aluminium Combination Step Ladder

Skylarc Ref L205133

Ullrich Aluminum Combination Step Ladder.
Made in New Zealand.
2265mm step ladder form height.
4500mm extension ladder form length.

2x Heavy Duty Workshop Shelving or Workbench Tables

Skylarc Ref V203895

2x Heavy Duty Workshop Shelving or Workbench Tables.
Auction includes 2x 2400x1115x920mm table/shelving frames currently stacked on top of each other, see photos.
They have welded box and angle steel frames with plywood surfaces.
Both are great for use as stacked Shelving, as seen in the photos, but also could be used as two separate workbench tables.

Pallet Racking Style Heavy Duty Shelving Assembly

Skylarc Ref U203894

Pallet Racking Style Heavy Duty Shelving Assembly.
Includes the following components:
- 2x 690x90x2320mm vertical frames.
- 8x 2730x50x115mm horizontal beams.
- 4x 20mm thick painted MDF Shelving boards.

NOTE that the items seen on the shelving are NOT included.

Pallet Racking Style Heavy Duty Shelving Assembly

Skylarc Ref T203893

Pallet Racking Style Heavy Duty Shelving Assembly.
Includes the following components:
- 2x 690x90x2320mm vertical frames.
- 8x 2730x50x115mm horizontal beams.
- 4x 20mm thick painted MDF Shelving boards.

NOTE that the items seen on the shelving are NOT included.

2x Steel Workshop Shelving Assemblies

Skylarc Ref S203892

2x Steel Workshop Shelving Assemblies.
Two units in this auction, each is approx 2700x400x1930mm.
Bolted sheet steel components.
NOTE that the items seen on and near the Shelving are NOT included.

Steel Storage Shelving Frame

Skylarc Ref Q203890

Steel Storage Shelving Frame made from welded box and angle steel lengths.
MDF Shelving boards.
Sturdy custom made unit.
NOTE that items seen on the Shelving are NOT included.

Steel Storage Shelving Frame

Skylarc Ref P203889

Steel Storage Shelving Frame made from welded box and angle steel lengths.
MDF Shelving boards.
Sturdy custom made unit.
NOTE that items seen on the Shelving are NOT included.

Workshop Shelving Assembly by Rack-It

Skylarc Ref M203886

Workshop Shelving Assembly.
Rack-It branded.
Includes 3x 430x45x1835mm vertical frames.
Includes 16x 1800x25x50mm horizontal beams with 400kg rating labeling.
Includes 8x MDF Shelving boards.
NOTE that the items seen on and near Shelving are NOT included.

Steel Workshop Storage Shelving Assembly

Skylarc Ref H203881

Steel Workshop Storage Shelving Assembly.
Bolted together components, buyer should bring tools to dissemble the unit on pickup.

150x 316 Grade Stainless Steel M16 Hex Bolts

Skylarc Ref X203871

150x 316 Grade Stainless Steel M16 Hex Bolts.
M16x65mm size.
Anzor branded.
As new bulk box with 150x total bolts.

5x Assorted Indexable Lathe Boring Bars

Skylarc Ref U203426

5x Assorted Indexable Lathe Boring Bars.
All are of unknown manufacturers.
Includes the following marked part numbers:
- S32U-CTFPR 16, 350mm length.
- SIR 0032 S16, 250mm length.
- S25T-CTFPR 16, 300mm length.
- S25T-CSKPR 12, 300mm length.
- S160 CTFPR-11, 180mm length.

Condition varies with each bar.

Single Phase Industrial Benchtop Buffer Polisher

Skylarc Ref O203992

Single Phase Industrial Benchtop Buffer Polisher.
Unknown brand/model.
Single phase 10A plug.
Threaded 19mm shafts at each end.
Mounted on a heavy steel 900mm tall stand.

Pryor Interchangeable Type Holder Set, 1.5mm Size

Skylarc Ref X203585

Pryor Interchangeable Type Holder Set.
Made in England.
1.5mm letter and number size.
12x pieces missing, see photos.
Remaining parts in excellent condition.

TaeguTec Indexable Lathe Boring Bar S40V-WTFNR-16

Skylarc Ref V203427

TaeguTec Indexable Lathe Boring Bar S40V-WTFNR-16.
400mm length.
Includes hex wrench for tip.
Plastic case has some damage.

7x Morse Taper No.5 Drill Shank Sleeve Adapters

Skylarc Ref Y203430

7x Morse Taper No.5 Drill Shank Sleeve Adapters.
Includes:
- 1x No.5 to No.1
- 1x No.5 to No.2
- 2x No.5 to No.3
- 3x No.5 to No.4

10x Mitutoyo Micrometer Metric Standards, as new

Skylarc Ref L203469

10x Mitutoyo Micrometer Metric Standards.
Lengths from 50mm to 275mm.
See photos for specific Mitutoyo Code numbers included.
All appear as new unused in original packaging.

Heavy Steel & Wood Workbench

Skylarc Ref V203479

Heavy Steel & Wood Workbench.
Welded box and angle steel frame.
45mm thick wood board top.
Well used but seems sturdy.
Note that the workbench was only put outside on the 7th October.

All Steel Workshop Workbench

Skylarc Ref A203484

All Steel Workshop Workbench.
Made entirely from welded 3mm steel panels.
Top work surface 1005mm above floor.
NOTE that the items seen on and within Workbench are NOT included.

Sturdy Heavy Duty Workbench

Skylarc Ref D203487

Sturdy Workbench.
50x50mm welded box steel frame with 18mm plywood surfaces.

Record No.5 Benchtop Vice

Skylarc Ref E203488

Record No.5 Benchtop Vice.
Made in England.
125mm wide jaws with aluminum covers added over them, see photos.

Record No.5 Benchtop Vice

Skylarc Ref P203499

Record No.5 Benchtop Vice.
Made in England.
125mm wide jaws.

Record No.5 Benchtop Vice

Skylarc Ref F203489

Record No.5 Benchtop Vice.
Made in England.
125mm wide jaws.

Woden 130mm Benchtop Vice

Skylarc Ref G203490

Woden 130mm Benchtop Vice.
Made in England.
Unsure of model number, see photo.
130mm wide jaws.

Vintage All.Steel Wrlding Trolley w/ Gas Torch & Regulators

Skylarc Ref H203491

Vintage All.Steel Welding Trolley w/ Gas Torch & Regulators.
525mm diameter steel trolley wheels.
560x240mm base lifting plate for two Gas bottles.
Includes Comet 3 gas torch plus XcelGas Oxygen and Acetylene regulators.

Mobile Workshop Table

Skylarc Ref O203888

Mobile Workshop Table.
Welded 35x20mm box steel frame with 55mm diameter castors.
Grey laminated MDF top surface with bare MDF lower shelf.
NOTE that the items seen on, under and near table are NOT included.

SEW-Eurodrive geared motor unit

Skylarc Ref R203995

SEW-Eurodrive SH37 DAS80N4/TF/IS geared motor unit.
Manufactured in New Zealand.
Model: SH37 DAS80N4/TF/IS
Power: 0.37 kW S1
Voltage: 266/460V three phase.
Frequency: 60 Hz
Speed: 1700/76 rpm
Torque: 40 Nm
Current: 1.38/0.80 A
Service factor: 1.75
Insulation class: F
Duty: S1
NEMA Design: 0
IP rating: 69K
Temperature range: -20 to +40°C
Power factor: 0.75
Gear ratio: i 22.50
Supply: Three phase TENV
Nameplate: 22.2237628602.0001.17

Benchtop Narrow Metal Roller

Skylarc Ref N203991

Benchtop Narrow Metal Roller.
Unknown manufacturer.
3x 150mm long rollers, two bottom rollers approx 95mm diameter, single top roller approx 75mm diameter.
Manually operated.

Heavy Steel Wall Mounted Workshop Storage Rack

Skylarc Ref Q203968

Heavy Steel Wall Mounted Workshop Storage Rack.
50x50mm and 25x50mm welded box steel frame.
Middle has rims for adding a 490mm wide board along the full length of the frame (board not included).
Upper 300mm long arms for holding long materials.
6x lower steel bins made from 6mm steel plate, each open ended bin is 480x300x150mm.
See photos for further design details of this custom made and very sturdy wall hung frame.

Desoutter Air Hammer Kit

Skylarc Ref C203954

Desoutter Air Hammer Kit.
Model No.388.
Includes 4x tip attachments plus steel carry case.

Koike IK-12 Beetle Oxy-fuel Cutting Machine

Skylarc Ref V203947

Koike IK-12 Beetle Oxy-fuel Cutting Machine.
Track not included.
Single phase.
Made in Japan.

Brady Portable Thermal Transfer Label Printer BMP71, Faulty?

Skylarc Ref S203788

Brady Portable Thermal Transfer Label Printer model BMP71.
Includes AC power cord/charger, CD-ROM disk, user manual, hard carry case.
Printer powers on and menus accessible, see photos. Case exterior has hand written note stating printer "needs repair", what specifically needs repairing is unknown. No printer ribbon or paper installed so we are unable to attempt a print test. External condition of printer is Very Good to Excellent.

Brady Portable Thermal Transfer Label Printer BMP71, Faulty?

Skylarc Ref R203787

Brady Portable Thermal Transfer Label Printer model BMP71.
Includes AC power cord/charger, CD-ROM disk, user manual, hard carry case.
Printer powers on and menus accessible, see photos. Case exterior has hand written note stating printer "needs repair", what specifically needs repairing is unknown. No printer ribbon or paper installed so we are unable to attempt a print test. External condition of printer is Very Good.

Workshop Workbench Table

Skylarc Ref R203761

Workshop Workbench Table.
Welded 50x50mm and 50x100mm box steel frame.
18mm plywood top.
Very worn MDF lower shelf that needs replacing, otherwise table good and sturdy condition unit.

3x Lifting Chain Hook Assemblies, 1600kg Capacities

Skylarc Ref F203411

3x Lifting Chain Hook Assemblies.
All have 1600kg max capacities.
All have 8mm chain.
All are 2100mm lengths.
All have certification tags good till 02/2027.

Steel Workshop Welding Trolley

Skylarc Ref G203412

Steel Workshop Welding Trolley.
Welded steel construction with light grey finish.
Plywood lower shelf.
125mm diameter wheels.
Top welder shelf 785mm above floor.
Gas bottle mount at rear..
Apoears to be a newer Trolley as shows light overall usage.

4x Metric & Imperial Drills w/ No.3 Shanks

Skylarc Ref L203443

4x Metric Drills w/ No.3 Shanks.
All are StimZet branded.
Sizes include 25mm, 26mm, 29mm, and 1".
The 1" shows light usage at the tip. The other three appear as new and potentially unused but cannot verify.

Assorted Metric & Imperial Tapered & Straight Reamers

Skylarc Ref D203461

Assorted Metric & Imperial Tapered & Straight Reamers.
Morse Taper No.2 and No.1 shanks as well as various square shank bits.
Condition varies with each bit.

Sturdy Steel & Wood Workbench

Skylarc Ref R203475

Sturdy Steel & Wood Workbench.
Welded heavy steel frame with 50mm thick top and lower wood board surfaces.
Heavy duty and sturdy workbench.
NOTE that to Toolbox seen in photos on the workbench is NOT included.

Vintage Heavy Steel Jig / Welding Table

Skylarc Ref U203478

Vintage Heavy Steel Jig / Welding Table.
45mm cast steel top 850x745mm.
Heavy welded box and angle steel frame.

Steel Workshop Parts washing Tub w/ Steel Frame

Skylarc Ref Z203483

Steel Workshop Parts washing Tub w/ Steel Frame.
Frame is made from welded 90x90mm angle steel.
Old Steel wash tub with white enameled surface used as a parts wash basin. Tub depth approx 290mm.

Vintage Heavy Steel Jig / Welding Table

Skylarc Ref E205126

Vintage Heavy Steel Jig / Welding Table.
45mm cast steel top 850x745mm.
Heavy welded box and angle steel frame.

25x Assorted End Mills

Skylarc Ref R205139

25x Assorted End Mills.
Mixed metric and imperial sizes from 6mm to 1 1/4".
See photos for types included.

Workshop Storage Cabinet

Skylarc Ref W203896

Workshop Storage Cabinet.
Lockable, key included.
Built in light.
MDF construction.

Milling / Drill Press Vice

Skylarc Ref F203983

Milling / Drill Press Vice.
Unknown brand/model.
118mm wide jaws.
Side mounting bolt holes spaced 150mm apart on centre.
Lengthwise bolt slots spaced 340mm apart.
Includes crank attachment.
Greasy from Workshop use.
Threaded rod cranking shaft would benefit from a bolt tightening.

2x Sungle Leg Lifting Chain Assemblies, 2000kg Capacities

Skylarc Ref D203409

2x Single Leg Lifting Chain Assemblies.
Both are max 2000kg Capacity each.
Both have 8mm chain size.
Both have 1200mm lengths.
Both have certification tags good till 02/2027.

Kanetsu Magnetic V-Block Type KVH-2

Skylarc Ref X203429

Kanetsu Magnetic V-Block Type KVH-2.
Made in Japan.
Block measures approx 124x61x73mm.
Includes accessory bar and on/off lever and vintage wood case.

3x V-Blocks w/ Clamps

Skylarc Ref A203432

3x V-Blocks w/ Clamps.
Two V-block are each 93x56x56mm.
The third block is approx 42x32x32mm.
Includes one clamp for small bock and 4x Clamps for the bigger blocks.

SLI Sumake Pneumatic 10mm Belt Sander ST-7709

Skylarc Ref W203454

SLI Sumake Pneumatic 10mm Belt Sander.
Model No. ST-7709.
Includes 3x new 3-belt sets of 10mm x 330mm P80 grit sanding belt packs.
Belt packs show storage wear.

13x Assorted Reamers

Skylarc Ref F203463

13x Assorted Reamers.
Assorted Metric and Imperisl sizes from 3/8" to 45mm.
Morse taper shank sizes include No.1, No2, No.3 and No.4
Condition varies with each reamer.

Mitutoyo 6-12" Outside Micrometer Set 104-138

Skylarc Ref I203466

Mitutoyo 6-12" Outside Micrometer Set.
Code No. 104-138
Micrometer and accessories very good to excellent condition.
Wood case shows exterior storage wear. Case Interior has the typical deteriorated black foam residue.

3x Sutton End Mills w/ 32mm Threaded Shanks

Skylarc Ref I203492

3x Sutton End Mills.
All are 1 3/4" HSS 4-12 end Mills.
Two end Mills are as new with factory wax still on cutting heads. The third end Mill has no wax and may show very light usage marks.
All have 32mm Threaded Shanks.
Includes older style Sutton branded boxes.

4x Sutton End Mills w/ 32mm & 24mm Threaded Shanks

Skylarc Ref J203493

4x Sutton End Mills w/ 32mm & 24mm Threaded Shanks.
Includes:
- 1 1/4", 4-11 mill with partial protective wax over cutters, 32mm diameter shank.
- 2x 1 1/8", 4-12 Mills both with protective wax over cutters, 24mm diameter shanks.
- 1x 1 3/4" mill with no wax over cutters, no obvious usage marks, 24mm diameter shank.

Old style Sutton boxes.

Assorted Lathe Live & Dead Centres

Skylarc Ref I205104

Assorted Lathe Live & Dead Centres.
The kit is a vintage Skoda Live centre kit with interchangeable tips. Main mount of this kit has a Morse Taper No.5 shank. The vintage wood kit box is missing its lid.
Auction also includes an unused unbranded No.5 size dead centre.
Auction includes 110mm diameter Live centre come with No.3 shank.

4x Box Steel Sawhorses

Skylarc Ref G205128

4x Box Steel Sawhorses.
Made from welded 40x40mm box steel legs and 50x50mm box steel top beam.
4x sawhorses in auction.
NOTE that the other items seen near and on top of the sawhorses are NOT included.

5x Large 35mm Dia Eye Bolts w/ Nuts & Washers

Skylarc Ref W203870

5x Large 35mm Dia Eye Bolts w/ Nuts & Washers.
Unknown steel type on eye bolts.
35mm diameter threaded shanks.
Two are 275mm long and three are 220mm long.
Includes 5x compatible nuts plus bags of approx 40+ compatible washers.
As new leftover workshop parts stock.

4x Hansen Valves ASB100H, New

Skylarc Ref T203867

4x Hansen Valves.
All are Part No.ASB100H.
All are as new leftover workshop parts stock.

4x Hansen Valves ASB125C, New

Skylarc Ref S203866

4x Hansen Valves.
All are Part No.ASB125C.
1 1/4" Size
All are as new leftover workshop parts stock.

3x 500mm Long Morse Taper Metric Drills

Skylarc Ref R203423

3x Long Morse Taper Drills.
Includes:
- Somta 20mm diameter, 500mm length drill with No.2 shank, with plastic case
- Somta 28mm diameter, 500mm length drill with No.3 shank, with plastic case.
- Somta 38mm diameter, 515mm length drill with No.4 shank, no case.

2x Partial Telescopic Gauge Sets

Skylarc Ref W203428

2x Partial Telescopic Gauge Sets.
Includes:
- Mitutoyo Code No.155-905 Telescopic gauge set. Includes gauges AA, A, B, D, and E. Gauge C is missing.
- Unknown brand gauge set with a mixed set of gauges, one is marked A, and the other two are both marked E even though they are obviously different sizes.

Condition varies with each set. Mitutoyo gauges Excellent and unbranded gauges Very Good to Good.

4x Mitutoyo Imperial Outside Micrometers

Skylarc Ref K205106

4x Mitutoyo Imperial Outside Micrometers.
Includes:
- Code No.103-178, 1" to 2"
- Code No.103-179, 2" to 3"
- Code No.103-181a, 4" to 5"
- Code No.103-182a, 5" to 6".

All include black plastic cases.
Micrometers generally very good condition, case exteriors good condition.

Aluninium Extension Ladder

Skylarc Ref T203997

Aluminum Extension Ladder.
Unknown manufacturer.
Length from approx 5120mm to 9100mm.

Small Heavy Duty Workbench

Skylarc Ref S203970

Small Heavy Duty Workbench.
3mm steel stop work surface with 75mm high rear back rim.
60mm diameter steel tube legs.
Green painted MDF lower shelves.
Steel bottom shelf.
Small but sturdy workbench.

6x Stackable Stillage Workshop Storage Bins

Skylarc Ref S203944

6x Stackable Stillage Workshop Storage Bins.
Each is approx 915x6q5x625mm.
Welded steel frames with plexiglass and sheet steel sides.
Plywood floors.
Stackable designs.

Heavy Duty Steel Workbench + Stainless Steel Wall Shelf

Skylarc Ref P203915

Heavy Duty Steel Workbench + Stainless Steel Wall Shelf.
Workbench is welded 48mm diameter steel tube legs, angle steel frame, 3mm steel sheet work top with plywood ovetop.
Plywood lower shelves.
Auction also includes a 2.5mm channel stainless steel shelf unit 2440mm long, 290mm wide, 55mm high sides.
Brackets welded to shelf for bolting to a wall.

Heavy Steel Roller Conveyor

Skylarc Ref N203757

Heavy Steel Roller Conveyor.
340mm.long, 60mm diameter rollers, most roll easily.
100x50mm channel steel top frame with 50x50mm box steel support legs.
Heavy duty sturdy roller unit.

Heavy Steel Roller Conveyor

Skylarc Ref M203756

Heavy Steel Roller Conveyor.
340mm.long, 60mm diameter rollers, all roll easily.
100x50mm channel steel top frame with 50x50mm box steel support legs.
Heavy duty sturdy roller unit.

Heavy Steel Roller Conveyor

Skylarc Ref L203755

Heavy Steel Roller Conveyor.
340mm.long, 60mm diameter rollers, all roll easily. Includes 3x spare rollers.
100x50mm channel steel top frame with 50x50mm box steel support legs.
Heavy duty sturdy roller unit. Oily surfaces.

Heavy Duty Steel Materials Dolly

Skylarc Ref I203752

Heavy Duty Steel Materials Dolly.
Made from 8mm thick plate steel with 60mm high upward curved corners.
Gaps between curved up corners is approx 250mm.
Platform height above floor is 200mm.
Trolley has 4x large heavy duty 150mm diameter, 50mm wide swivel wheels.
Very sturdy heavy duty low dolly.
See our other listings for more of these units.

Heavy Duty Steel Materials Dolly

Skylarc Ref H203751

Heavy Duty Steel Materials Dolly.
Made from 8mm thick plate steel with 60mm high upward curved corners.
Gaps between curved up corners is approx 250mm.
Platform height above floor is 200mm.
Trolley has 4x large heavy duty 150mm diameter, 50mm wide swivel wheels.
Very sturdy heavy duty low dolly.
See our other listings for more of these units.

Heavy Duty Steel Materials Dolly

Skylarc Ref G203750

Heavy Duty Steel Materials Dolly.
Made from 8mm thick plate steel with 60mm high upward curved corners.
Gaps between curved up corners is approx 250mm.
Platform height above floor is 200mm.
Trolley has 4x large heavy duty 150mm diameter, 50mm wide swivel wheels.
Very sturdy heavy duty low dolly.
See our other listings for more of these units.

20mm Keyed Drill Chuck w/ Morse Taper No.5 Shank

Skylarc Ref X203741

20mm Keyed Drill Chuck w/ Morse Taper No.5 Shank.
Made by Jacobs Chuck USA.
Includes chuck key.

Mobile Steel Workbench w/ Vice

Skylarc Ref U203582

Mobile Steel Workbench w/ Vice.
Welded steel construction with 3mm steel top surface 995mm above floor.
95mm diameter castors.
Total length including side pull handles approx 1345mm.
Includes Eclipse model EMV-3 benchtop vice with 100mm wide jaws.

Mobile Steel Workbench

Skylarc Ref T203581

Mobile Steel Workbench.
Welded steel construction with 3mm steel top 1005mm above floor.
Work top.1170mm long.
Right side lower side shelf 665x310mm.
125mm diameter wheels.
Sturdy mobile workbench.

3-Phase Buffer on Stand

Skylarc Ref N203575

3-Phase Buffer on Stand.
16A 500V 4-pin plug.
Mounted on a heavy steel 950mm tall stand.
Appears to be a custom assembled setup.

Alco Aluminum Extension Ladder, Damaged

Skylarc Ref H203569

Alco Aluminum Extension Ladder.
Length from approx 4220mm to approx 7200mm.
NOTE that there is a bend in the frame of the upper section near the latch mechanism, see photos. Also 5x original tube steps have been replaced with flat steps, see photos.

Limit 25-50mm Outside Micrometer

Skylarc Ref O203420

Limit 25-50mm Outside Micrometer.
Code No.9538-0200.
Plastic case.

8x Long Morse Taper Drills

Skylarc Ref Q203422

8x Long Morse Taper Drills.
Sizes include:
35/64"
39/64"
12mm
47/64"
16mm
11/16"
7/8"
1"
Shank sizes include No.1, No.2, and No.3
Total.lengths vary from 300mm to 370mm.
Condition varies with each unit.

Sturdy Vintage Wooden Workbench

Skylarc Ref F203437

Sturdy Vintage Wooden Workbench.
95x95mm corner legs,
95x45mm wood framing.
43mm thick wood board top.
20mm thick wood board lower shelf.
Old but still very sturdy classic Workbench.
Note that its only been outside for about a week at the time of this booking so no weathering damage, etc.

Steel & Aluminium Welding Workbench Table

Skylarc Ref I203440

Steel & Aluminum Welding Workbench Table.
50x50mm box steel frame.
Top surface is 10mm plate steel with 5mm aluminum sheet overtop.

Vintage Cardinal Counterboring Set No.1

Skylarc Ref X203455

Vintage Cardinal Counterboring Set No.1
Made in England.
Bit mounting holder with Morse Taper No.2 shank.
Imperial sizes.
See photos for included components.
Stored in a 240x160x75mm wood box.

7x Go No-Go Gauges, Metric Sizes

Skylarc Ref Y203456

7x Go No-Go Gauges
Unknown manufacturer.
153mm gauge lengths.
Diameters include:
- 40mm
- 35mm
- 34mm
- 30mm
- 25mm
- 24mm
- 20mm

7x Go No-Go Gauges, Imperial Sizes

Skylarc Ref Z203457

7x Go No-Go Gauges
Unknown manufacturer.
153mm gauge lengths.
Diameters include:
- 1 1/4"
- 1 1/8"
- 1"
- 7/8"
- 3/4"
- 5/8"
- 1/2"

Interchangeable Counterbore Set

Skylarc Ref G203464

Interchangeable Counterbore Set.
Unknown manufacturer.
Partial wood case 485x310x25mn.
Case is missing its lid.
See photos for included counterbore parts and attachments.

Hassay Savage Hexagonal Broach, 7/8-Inch Size

Skylarc Ref F205101

Hassay Savage Hexagonal Broach.
Part No.12056.
7/8" Hexagonal, 7/8" PI LCT.
480mm length.
Appears near new condition.

3x Mitutoyo Metric Outside Micrometers

Skylarc Ref L205107

3x Mitutoyo Metric Outside Micrometers.
Includes:
- Code No.103'142b, 125-150mm.
- Code No.103-140b, 75-100mm (missing standard)
- Micrometer missing all ID labels, estimating its a 50-75mm range unit, also missing standard. Case lid is detached.

All have black plastic cases.

Ullrich Aluminum Combination Step Ladder

Skylarc Ref K205132

Ullrich Aluminum Combination Step Ladder.
Made in New Zealand.
1420mm step ladder height.
2650mm extension ladder length.

Assorted Small Endmills

Skylarc Ref M205134

Assorted Small Endmills.
Imperial sizes.
Condition varies with each unit.

Workshop Shelving Assembly

Skylarc Ref N203887

Workshop Shelving Assembly.
Includes the following components:
- 3x 450x45x1805mm white vertical frames.
- 20x 910x45x40mm green horizontal beams.
- 10x MDF Shelving boards.

NOTE that the items seen on the Shelving are NOT included.

Steel Workshop Shelving Assembly

Skylarc Ref K203884

Steel Workshop Shelving Assembly.
Lighter duty metal components.
Bolted together design, buyer can bring tools to disassemble the assembly on pickup.
NOTE that the items seen on the shelves are NOT included.

6x ReidBrace 16 Structural Tension Bracing Kits, New

Skylarc Ref D203877

6x ReidBrace 16 Structural Tension Bracing Kits.
As new kits, dusty from storage.

Assorted Bolts, Nuts, Washers

Skylarc Ref V203869

Assorted Bolts, Nuts, Washers.
Box of 200x mild steel M12x40mm cup head bolts with nuts.
Bag of 9x M20x70mm bolts with nuts.
Bag of 8x M20x120mm bolts with nuts.
Box of Galvanized M24x100mm bolts with nuts, estimate approx 20x sets in box.
Items are leftover workshop parts stock

Industrial Electrical Cable 1x(4xAWG2/7

Skylarc Ref C203850

Insulation type PE/0.23.
Style 1973.
Cable Style 20549.
Rating temperature 080.
Voltage 0300.
Jacket type PUR/0.38.
Conductor/Size 004/0022
Construction 1x(4xAWG2/7) Profinet Type C Pcat 5e.
Green outer sleeve.
Length on 220mm diameter, 235mm wide spool is unknown.
Cable reel configuration for industrial use.
Leftover unused workshop parts stock.
See our other listings for more of this cable.

Industrial Electrical Cable 1x(4xAWG2/7

Skylarc Ref B203849

Insulation type PE/0.23.
Style 1973.
Cable Style 20549.
Rating temperature 080.
Voltage 0300.
Jacket type PUR/0.38.
Conductor/Size 004/0022
Construction 1x(4xAWG2/7) Profinet Type C Pcat 5e.
Green outer sleeve.
Length on 220mm diameter, 235mm wide spool is unknown.
Cable reel configuration for industrial use.
Leftover unused workshop parts stock.
See our other listings for more of this cable.

Industrial Electrical Cable 1x(4xAWG2/7

Skylarc Ref A203848

Insulation type PE/0.23.
Style 1973.
Cable Style 20549.
Rating temperature 080.
Voltage 0300.
Jacket type PUR/0.38.
Conductor/Size 004/0022
Construction 1x(4xAWG2/7) Profinet Type C Pcat 5e.
Green outer sleeve.
Length on 220mm diameter, 235mm wide spool is unknown.
Cable reel configuration for industrial use.
Leftover unused workshop parts stock.
See our other listings for more of this cable.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref Z203847

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spool is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref Y203846

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref X203845

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref W203844

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref V203843

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref U203842

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

LAPP LSOH Industrial Control Cable Reel 5x0.34mm

Skylarc Ref T203841

LAPP LSOH industrial control cable.
Cable style: 20549.
Construction: 5x0.34mm BLACK RAL 9005 UL 20549.
Insulation type: PP/0.20.
Jacket type: PUR/0.38.
Style: 10493.
Nominal conductor/size: 005/0022.
Rating temperature: 080.
Voltage: 0300.
Manufactured in Germany.
Black wrapping.
New unused workshop parts stock.
Length on 220x225mm spooll is unknown.
See our other listings for more Spools of this wire type.

2x Allen Bradley 140G Molded Case Circuit Breakers

Skylarc Ref Q203838

Allen Bradley 140G G-Frame molded case circuit breakers.

Includes the following units:

Unit 1: Model 140G-G2C3-C30
Serial Number BE81082087
Rated 690V AC - 500V DC
UI 800V
Uimp 8kV
Frequency 50-60 Hz

Unit 2: Model 140G-G2C3-C16
Serial Number BG71062010
Rated 690V AC - 500V DC
UI 800V
Uimp 8kV
Frequency 50-60 Hz

Manufactured in Italy.
UL Listed.
CE marked.
Packaged in cardboard boxes.
Both are as new unused leftover workshop parts stock.

Custom Mobile Parts Shelf Trolley

Skylarc Ref Y203950

Custom Mobile Parts Shelf Trolley.
Standard Shelving unit converted to a mobile parts shelf trolley.
Plywood panels added to back and lower sides.
Two base boards with castors attached for mobility.
3x 110mm diameter pvc pipes on one side for holding long thin items.
18x Bintec branded plastic parts storage bins, each 170x100x87mm.
See photos for further details on this custom constructed assembly.

2x Lifting Chain Hook Assemblies, 1600kg Capacities

Skylarc Ref E203410

2x Lifting Chain Hook Assemblies.
1600kg Capacity each.
Both have 8mm chain
Both have 1500mm lengths.
Both have certification tags good till 02/2027.

200mm Analog Vernier Caliper by The Tool Shed

Skylarc Ref N203419

200mm Analog Vernier Caliper by The Tool Shed.
Stainless steel.
Includes plastic case.

Iscar HELi2000 Indexible Milling Cutter, as new

Skylarc Ref T203451

Iscar HELi2000 Indexible Milling Cutter.
Part No. HM90 E90AD D32-3-C32.
120mm length.
As new with case and hex tool.

Mitutoyo Dial Gauge Stand 7004, as new!

Skylarc Ref V203453

Mitutoyo Dial Gauge Stand Code No.7004.
205mm stand height.
55mm diameter protected testing base disk.
The vintage tool has been stored sealed in a bag for some time and still appears in as new condition.

Assorted Counterbore Drills

Skylarc Ref C203460

Assorted Counterbore Drills.
Various metric and imperial sizes.
Condition varies with each bit.

Assorted Steel Letter Number Stamp Sets

Skylarc Ref H203465

Assorted Steel Letter Number Stamp Sets.
Sizes from approx 3mm to 12mm.
Condition varies with each set.

5x Sutton Imperial Tapered Reamers

Skylarc Ref K203468

5x Sutton Imperial Tapered Reamers.
Sizes include:
- 9/16"
- 2x 11/16"
- 13/16"
- one with worn off size markings similar in size to the 13/16" one mentioned above.

One with Morse Taper No.2 shank and four with No.3 Shanks.
All appear very lightly used or possibly unused.
All include Sutton branded boxes.

Marui Keiki Universal Bevel Protractor BP-301

Skylarc Ref O205110

Marui Keiki Universal Bevel Protractor model BP-301.
Protector and accessories in excellent condition.
Wood case exterior good condition showing workshop storage wear. Wood case missing latches.

Ullrich Wide Aluminium Double Sided Step Ladder

Skylarc Ref W204000

Ullrich Wide Aluminum Double Sided Step Ladder.
840mm height.
Made in New Zealand
Folds for storage.

Hydraulic Power Pack Jack Unit

Skylarc Ref J203987

Hydraulic Power Pack Jack Unit.
Unknown brand/model.
Cylinder is approx 400mm ling, 60mm diameter.
Auction includes only the jack seen in photos, all attachments and accessories are missing.

Ullrich Double Sided Folding Step Ladder

Skylarc Ref H203985

Ullrich Double Sided Folding Step Ladder.
Made in New Zealand.
845mm top step height.

2x Freestanding Welding Screen Frames w/ Green Screens

Skylarc Ref A203978

2x Freestanding Welding Screen Frames w/ Green Screens.
Green screens are ArcSafe category C5 type.
Frames are 35mm diameter welded steel tube.
Both frames are the same dimensions.
A few rips in green screens.

2x Freestanding Welding Screen Frames w/ Green Screens

Skylarc Ref Z203977

2x Freestanding Welding Screen Frames w/ Green Screens.
Green screens are ArcSafe category C5 type.
Frames are 35mm diameter welded steel tube.
Both frames are the same dimensions.
A few smaller holes in green screens, see photos.

2x Freestanding Welding Screen Frames w/ Green Screens

Skylarc Ref Y203976

2x Freestanding Welding Screen Frames w/ Green Screens.
Green screens are ArcSafe category C5 type.
Frames are 35mm diameter welded steel tube.
Both frames are the same dimensions.
A few smaller holes in green screens, see photos.

2x Freestanding Welding Screen Frames w/ Green Screens

Skylarc Ref X203975

2x Freestanding Welding Screen Frames w/ Green Screens.
Green screens are ArcSafe category C5 type.
Frames are 35mm diameter welded steel tube.
Both frames are the same dimensions.
Both screens should be replaced as are heavily torn, see photos. Frames in very good condition.

Mobile Table Workbench Trolley

Skylarc Ref H203959

Mobile Table Workbench Trolley.
50x50mm angle steel and 35x35mm box steel welded frame.
150mm diameter, 50mm wide wheels.
16mm plywood top and lower surfaces.
Sturdy heavy duty mobile unit.

Mobile Table Workbench Trolley

Skylarc Ref G203958

Mobile Table Workbench Trolley.
50x50mm angle steel and 35x35mm box steel welded frame.
150mm diameter, 50mm wide wheels.
16mm plywood top and lower surfaces.
Sturdy heavy duty mobile unit.

Atlas Copco Powerbor PB65 Magnetic Drill, Faulty Magnet

Skylarc Ref K203936

Atlas Copco Powerbor PB65 Magnetic Drill.
Made in Germany.
Jacobs USA 16mm keyed drill chuck with key.
10A single phase plug.
32mm max steel thickness.
NOTE that this drill is labeled as having a faulty magnet.
No shipping available as item is too heavy for courier.

7x Assorted Annular Cutters + Keylees Drill Chuck

Skylarc Ref J203935

7x Assorted Annular Cutters.
Includes sizes:
- 14mm
- 18mm (2x units)
- 22mm
- 25mm
- 30mm
- 32mm
- 2x centre pin inserts.
- Includes a Keyless 10mm drill chuck with same type of shank mount.

Condition varies with each cutter.

Alfra Rotabest Master Magnetic Drill w/ Mobile Table, Faulty

Skylarc Ref I203934

Alfra Rotabest Master Magnetic Drill w/ Mobile Table Trolley.
Drill made in Germany.
Drill is attached to a mobile all steel table trolley 770x570x1000mm.
NOTE that drill has a Danger tag attached as its motor housing is removed for unknown internal fault.

Industrial Mobile Spool Trolley

Skylarc Ref F203931

Industrial Mobile Spool Trolley.
50x50mm box steel frame.
135mm diameter, 40mm wide wheels.
2x removable 660mm long, 60mm diameter ball bearing rollers that can be moved to different locations on base frame, see photos.
Width between upper frame bars is 730mm.
Top is missing a 60mm diameter bar for holding cable or other rolled material reels, see photos.
Distance from top to lower rollers is approx 485mm.
Dusty surfaces.

Pair of Heavy Duty Steel Sawhorses

Skylarc Ref V203921

Pair of Heavy Duty Steel Sawhorses.
Matching units with 50x50mm box steel legs and 100x50mm channel steel top bars.
Sturdy units.

Starrett Metric Hole Saw Kit

Skylarc Ref L203911

Starrett Metric Hole Saw Kit.
Sizes include 16mm, 20mm, 25mm, 32mm, 40mm, and 51mm.
Condition varies with each hole saw.

Manual Aluminium DIN Rail Cutter

Skylarc Ref G203906

Manual Aluminum DIN Rail Cutter.
Unknown brand/model.
600x80mm steel cutter base plate.

Manual Aluminium DIN Rail Cutter

Skylarc Ref E203800

Manual Aluminum DIN Rail Cutter.
Unknown brand/model.
600x80mm steel cutter base plate.

750mm Electric Wall Fan by Professional Equipment

Skylarc Ref D203799

Professional Equipment PEF26 Electric Wall Fan
Model PEF026
Voltage 240V
Frequency 50Hz
Power 280W
Air Flow 2900m/min
Fan Size 750mm diameter.
800mm cage diameter.
Metal wire mesh guard.
Metal motor housing with 3-speed switch.
Wall-mounted bracket included.
Power cord with plug attached.
Would benefit from a dusting.
See our other listings for more workshop wall fans.

750mm Electric Wall Fan

Skylarc Ref C203798

Workshop Electric Wall Fan
Unknown brand/model
Voltage 240V
Frequency 50Hz
Power 380W
Fan Size 750mm diameter.
800mm cage diameter.
Metal wire mesh guard.
Metal motor housing with 3-speed switch.
Wall-mounted bracket included.
Power cord with plug attached.
Would benefit from a dusting.
See our other listings for more workshop wall fans.

750mm Electric Wall Fan by Professional Equipment

Skylarc Ref B203797

Professional Equipment PEF26 Electric Wall Fan
Model PEF026
Voltage 240V
Frequency 50Hz
Power 280W
Air Flow 2900m/min
Fan Size 750mm diameter.
800mm cage diameter.
Metal wire mesh guard.
Metal motor housing with 3-speed switch.
Wall-mounted bracket included.
Power cord with plug attached.
Would benefit from a dusting. Some rust spotting on chrome wire cage.
See our other listings for more workshop wall fans.

750mm Electric Wall Fan by Professional Equipment

Skylarc Ref A203796

Professional Equipment PEF26 Electric Wall Fan
Model PEF026
Voltage 240V
Frequency 50Hz
Power 280W
Air Flow 2900m/min
Fan Size 750mm diameter.
800mm cage diameter.
Metal wire mesh guard.
Metal motor housing with 3-speed switch.
Wall-mounted bracket included.
Power cord with plug attached.
Would benefit from a dusting. Some rust spotting on chrome metal cage.
See our other listings for more workshop wall fans.

750mm Electric Wall Fan by Strom

Skylarc Ref Z203795

STROM brand wall-mounted fan.
Model 0362646.
750mm fan diameter.
800mm cage diameter.
Voltage 240V.
Frequency 50Hz.
Power 380W.
Metal wire mesh guard.
Metal motor housing.
3-speed switch control.
Wall-mounting bracket included.
Power cord with plug attached.

Ampro Air Orbital Sander A4243

Skylarc Ref X203793

Ampro Air Orbital Sander model A4243.
Base pad 165x85mm.

10x Drills w/ various Morse Taper Shanks

Skylarc Ref V203791

10x Drills w/ various Morse Taper Shanks.
Includes:
- 13.5mm with No.1 shank (damaged shank.end).
- 15mm with No.2 shank.
- 15.5mm with No.2 shank.
- 20.5mm with No.2 (damaged shank end)
- 23mm with No.2
- Worn markings drill with No.2, hand measured at approx 15mm dia.
- 24mm with No.3 shank
- 24.5mm with No.3
- 2x 26mm with No.3

Condition and length varies greatly with each unit.

5x Drills w/ Morse Taper No.4 Shanks

Skylarc Ref U203790

5x Drills w/ Morse Taper No.4 Shanks.
-35mm
- 1 1/2"
- 40mm
- 45mm
- Worn ID markings drill, hand measured at approx 42mm dia.

Condition and remaining length varies greatly with each drill

Manual Aluminium DIN Rail Cutter

Skylarc Ref Q203786

Manual Aluminum DIN Rail Cutter.
Unknown brand/model.
600x80mm steel cutter base plate.

Ullrich Wide Aluminium Double Sided Step Ladder

Skylarc Ref P203785

Ullrich Wide Aluminum Double Sided Step Ladder.
840mm height.
Made in New Zealand
Folds for storage.

Heavy Duty Square Mobile Table Workbench Trolley

Skylarc Ref D203773

Mobile Table Workbench Trolley.
50x50mm angle steel and 35x35mm box steel welded frame.
150mm diameter, 50mm wide wheels.
Plywood top and lower surfaces.
Sturdy heavy duty mobile unit.

Mobile Workshop Storage Cabinet

Skylarc Ref B203771

Mobile Workshop Storage Cabinet.
Ultimate Storage branded.
Steel construction with removable MDF board top.
Lockable steel cabinet doors, key is included.
75mm diameter wheels.
One door handle is missing, leaving a hole in the door, see photos. Otherwise generally Very Good condition.
