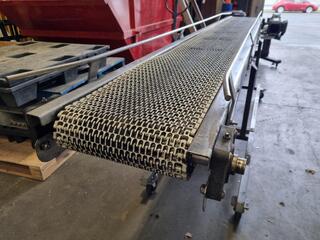

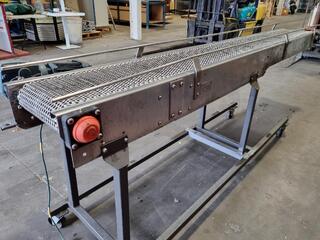

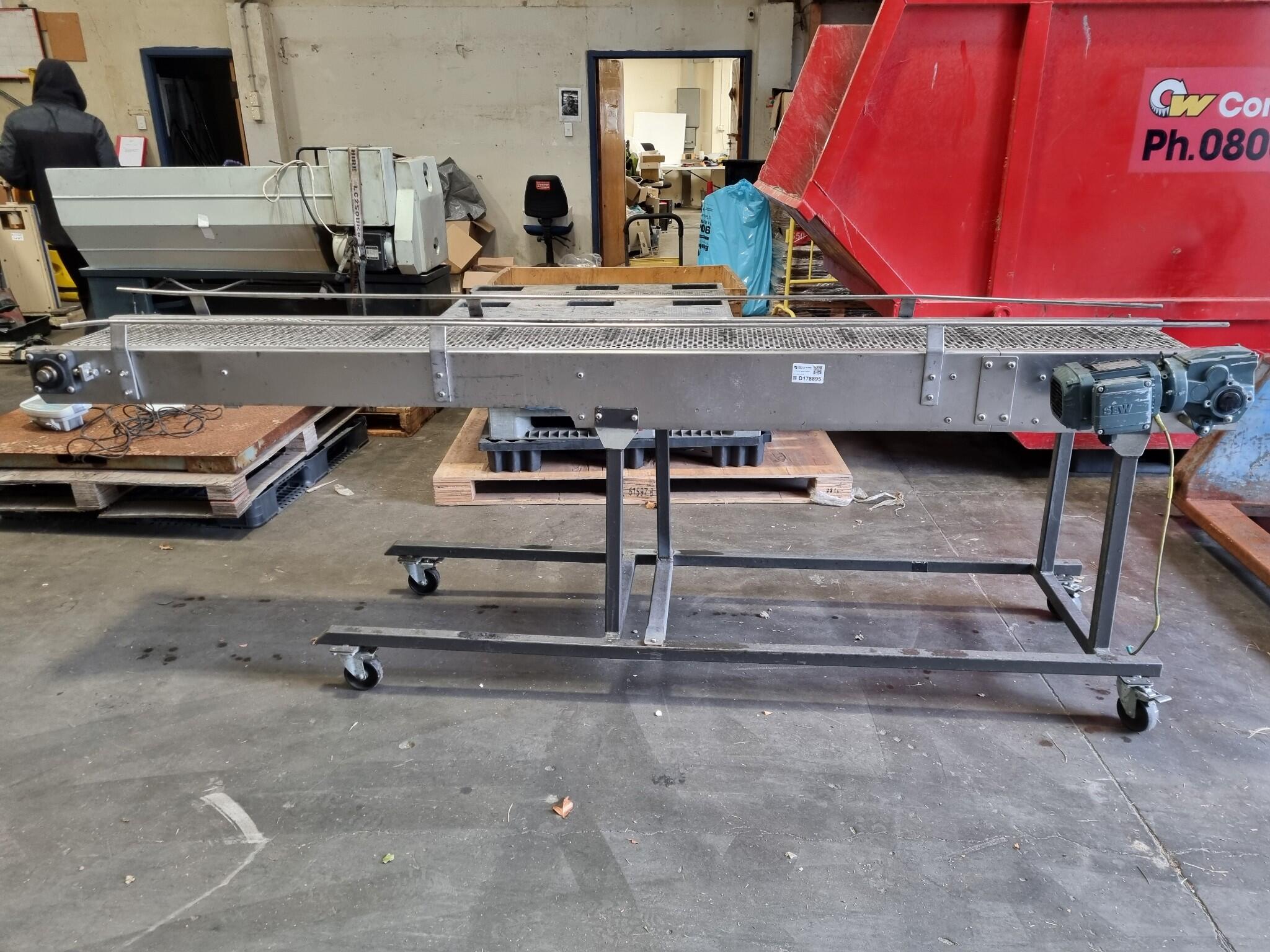

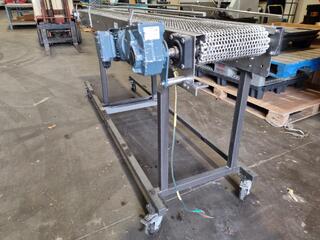

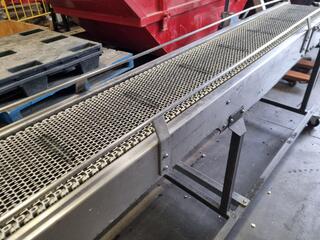

Stainless steel conveyor with mesh belt.

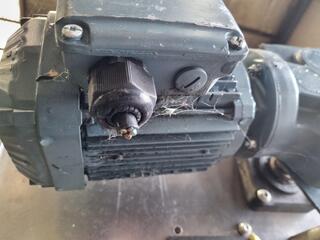

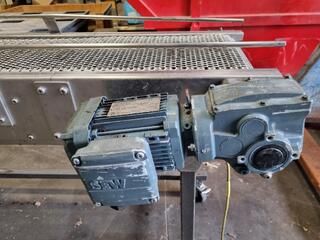

Powered by SEW Eurodrive motor and gearbox.

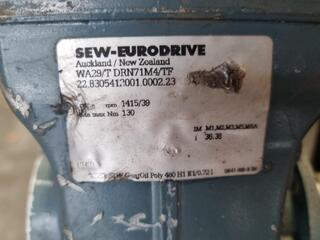

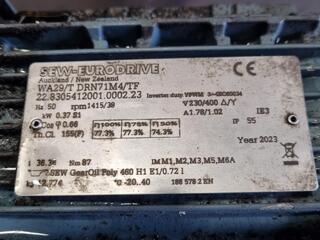

Motor nameplate model WA29/T DRN71M4/TF.
Motor rated power 0.37 kW.
Motor rated speed 1415 rpm.
Motor rated voltage 230/400 V delta/star.
Motor frequency 50 Hz.
Motor efficiency class IE3.
Gearbox ratio i 36.38.
Gearbox rated torque 87 Nm.
Motor duty type S1.
Motor protection class IP55.
Motor year of manufacture 2023.
Conveyor frame mounted on steel stand.

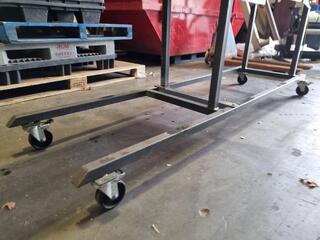

Stand fitted with four swivel castor wheels.
Conveyor width 310mm.
Converyor surface height above floor 930mm.

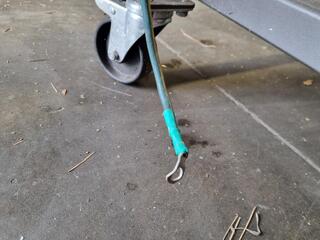

Unable to test as power cable to motor us cut. Operational condition of converyor and motor is unknown.
Dimensions
Length: 2900mm Width: 600mm Height: 1010mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Untested - The product has not been tested
