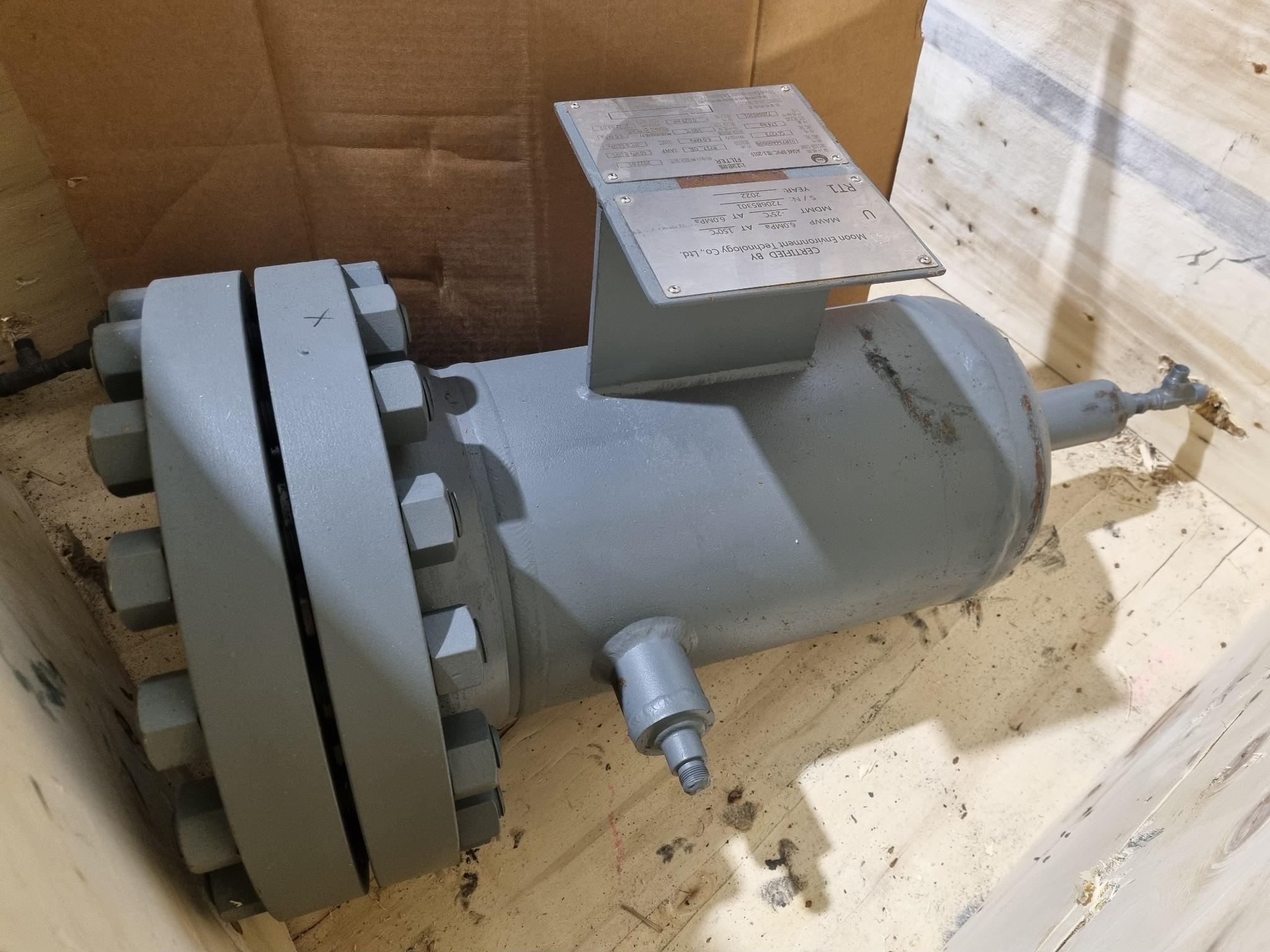

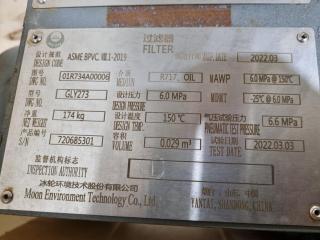

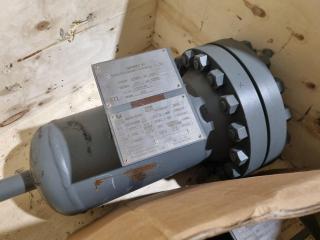

Hydraulic filter model GLY273 manufactured by Moon Environment Technology Co., Ltd.
Type: Pressure line filter for oil circulation systems.

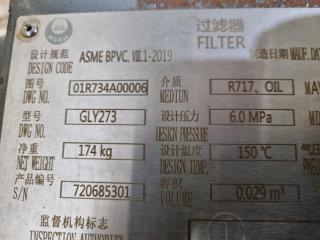

Design code: ASME BPVC. VIII.1-2019.
Drawing number: 01R734A00006.
Serial number: 720685301.
Net weight: 174 kg.
Volume: 0.029 m³.
Manufacture date: March 2022.

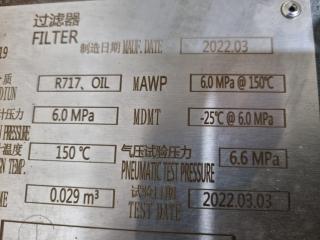

Medium: R717, Oil.
Design pressure: 6.0 MPa.
Design temperature: 150°C.
Maximum allowable working pressure (MAWP): 6.0 MPa at 150°C.
Minimum design metal temperature (MDMT): -25°C at 6.0 MPa.
Pneumatic test pressure: 6.6 MPa.
Test date: 3 March 2022.
Flange connections for inlet and outlet.

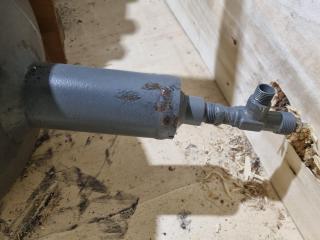

Threaded port for drain or gauge.
Certified by Moon Environment Technology Co., Ltd. in 2022.
As new never installed.

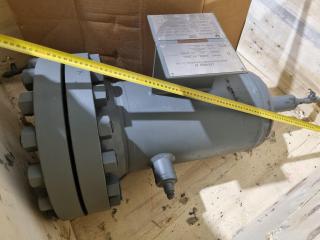

Dimensions
Length: 940mm Width: 440mm Height: 480mm
Condition
As New - The item is removed from its packaging but is otherwise new
Testing
Needs Installation - The product can't be tested as it needs to be installed to do test
