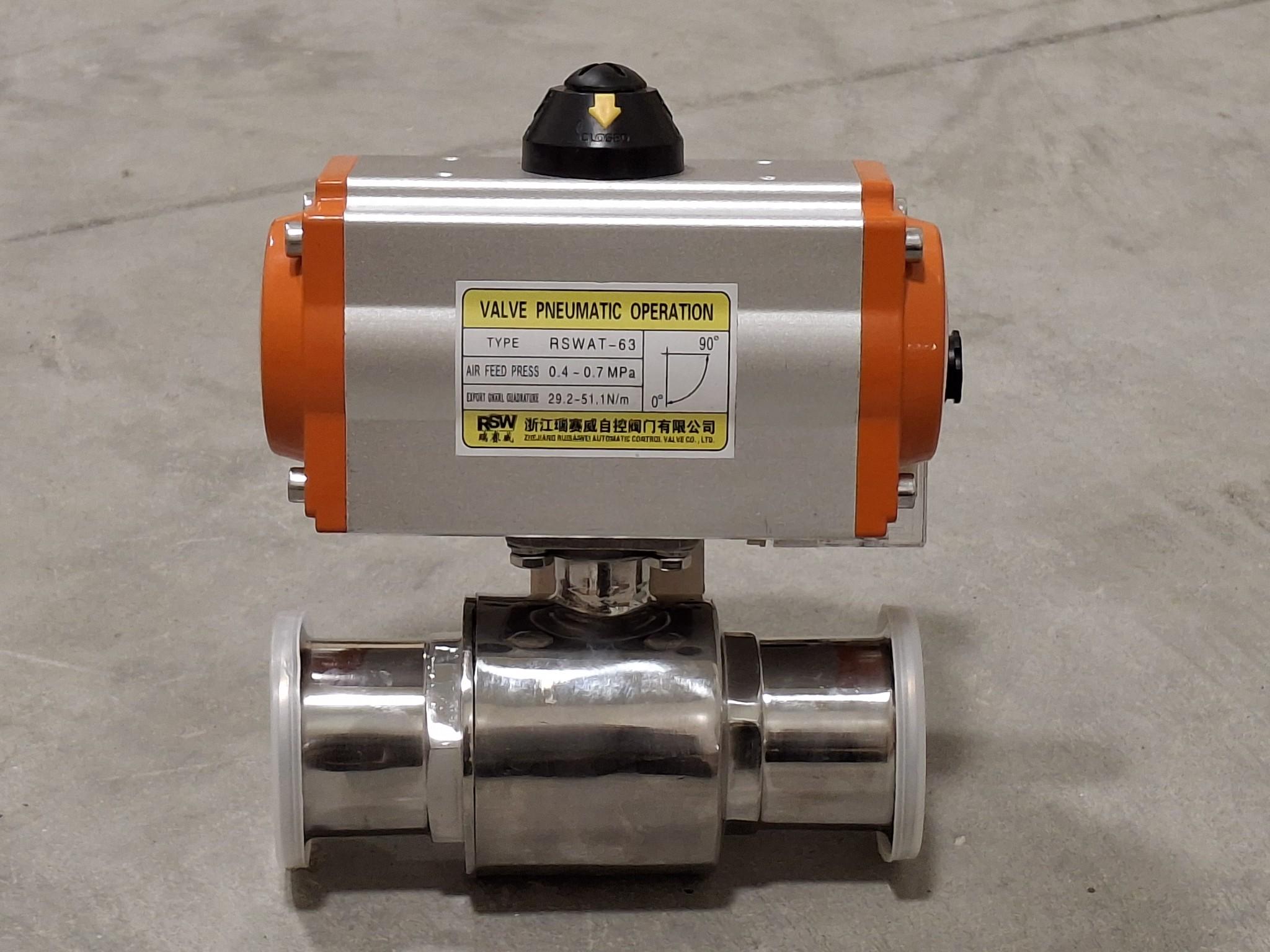

Valve pneumatic operation actuator

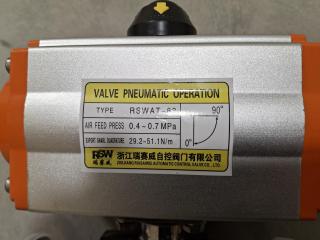

Actuator type RSWAT-63
Air feed pressure range 0.4 to 0.7 MPa
Output torque range 29.2 to 51.1 N·m
Actuator rotation 0 to 90 degrees
Stainless steel valve body with tri clamp style ends

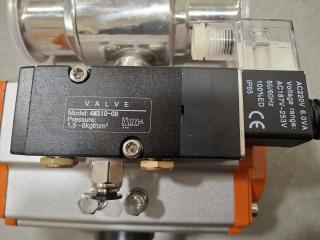

Solenoid valve model 4M310-08
Solenoid operating pressure range 1.5 to 8 kgf per cm2
Solenoid supply voltage AC220V
Solenoid apparent power 6.0 VA
Solenoid voltage range AC187V to AC253V 50 or 60 Hz
Solenoid duty rating 100 percent ED
Solenoid ingress protection rating IP65
Dimensions
Length: 185mm Width: 110mm Height: 210mm
Condition
New - The item is new and in its original packaging
Testing
Untested - The product has not been tested
