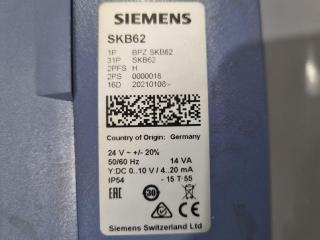

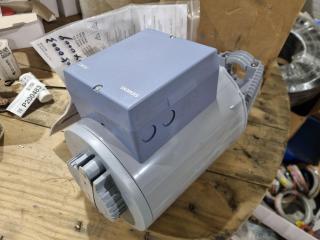

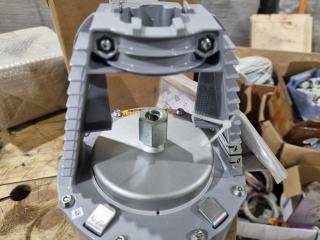

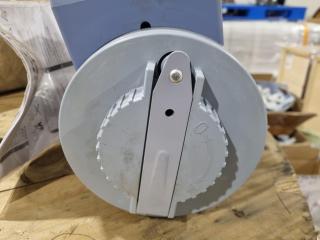

Siemens Electrohydraulic Actuator.
Model No.SKB62
Operating voltage AC 24 V.
Positioning signal DC 0...10 V, 4...20 mA, 0...1000 Ohm.
Positioning time Open:120 s, Close:10 s.
Stroke 20 mm.
Spring return function Yes (10 s).
Position feedback DC 0…10 V, 4…20 mA.
Degree of protection IP54.
Medium temperature -25…220 °C.
Ambient temperature, operation-15…55 °C.
Mounting position Upright to horizontal.
Dimensions (W x H x D) 178 x 375 x 226 mm.

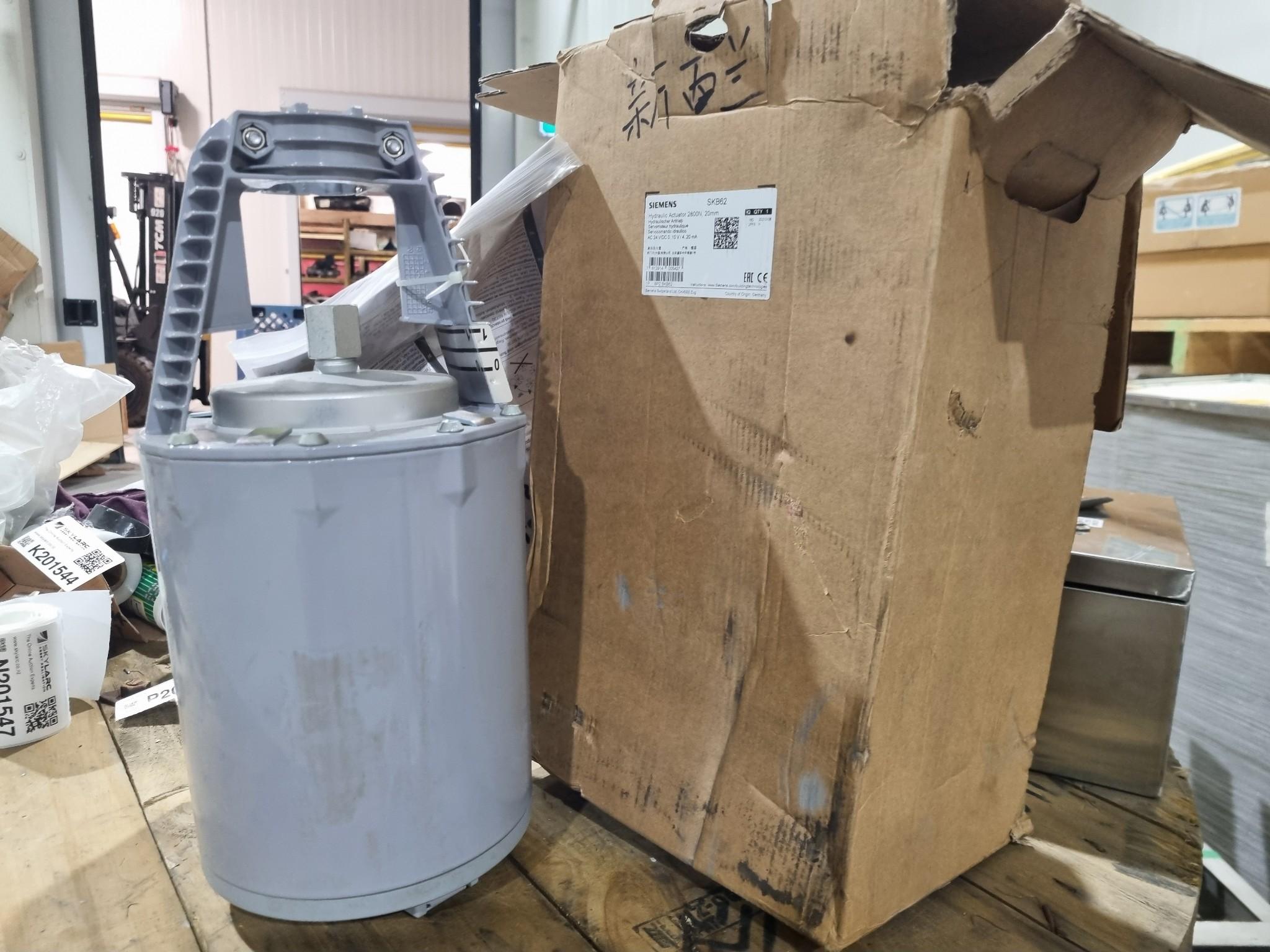

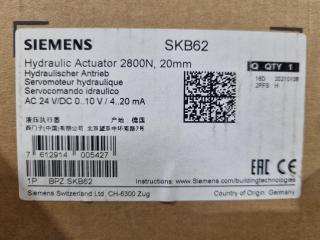

Item is as new never installed. Factory box shows some storage damage.
See the Siemens website below for further item details:
https://hit.sbt.siemens.com/RWD/app.aspx?rc=NZ&lang=en&module=Catalog&action=ShowProduct&key=BPZ:SKB62
Dimensions
Length: 260mm Width: 200mm Height: 440mm
Condition
As New - The item is removed from its packaging but is otherwise new
Testing
Needs Installation - The product can't be tested as it needs to be installed to do test
