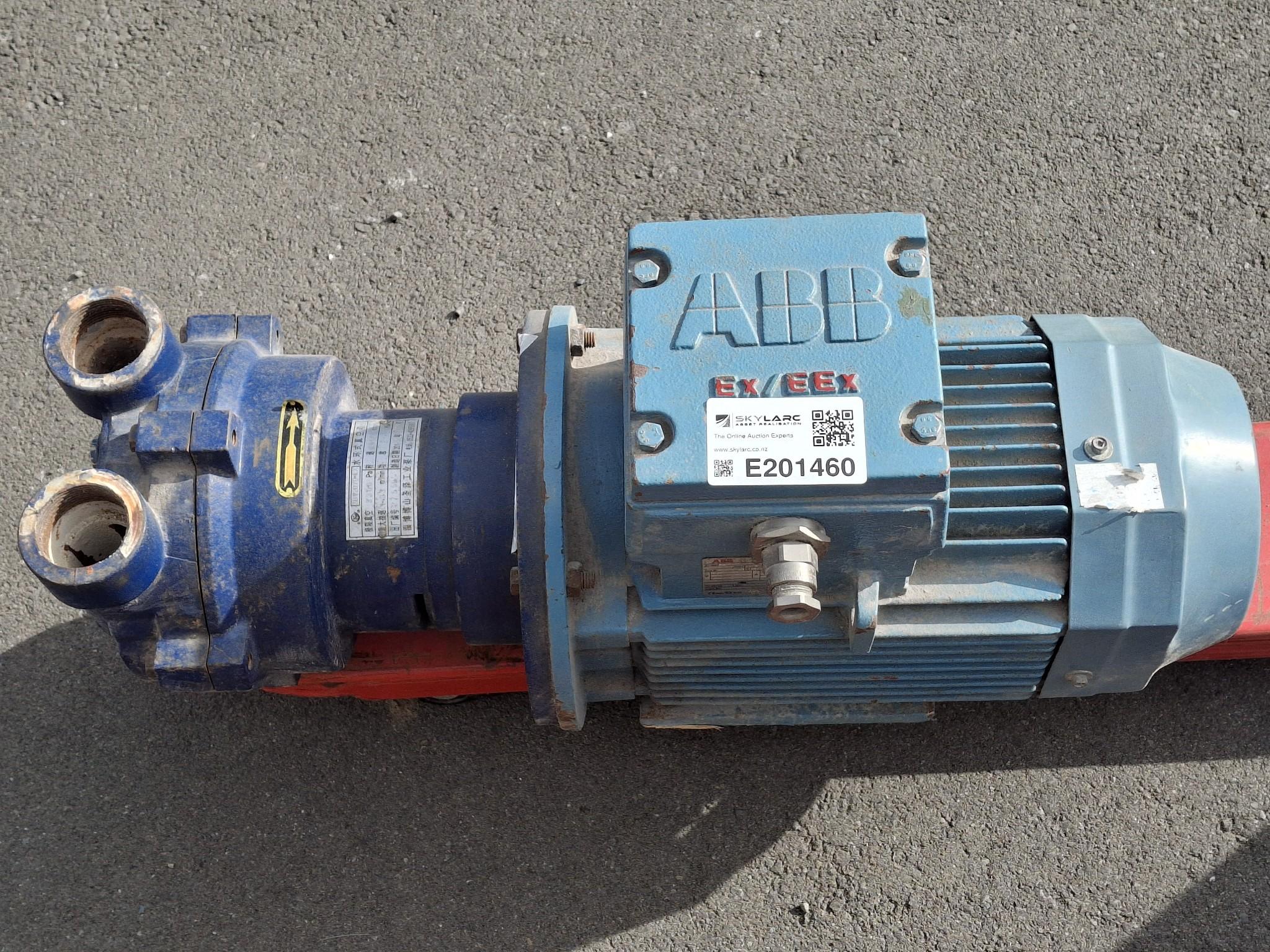

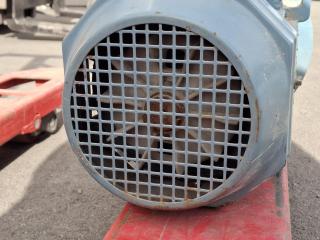

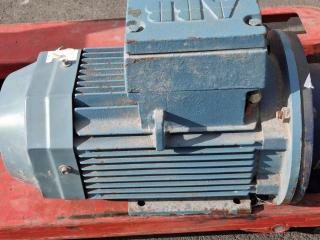

ABB Motors three phase electric motor.

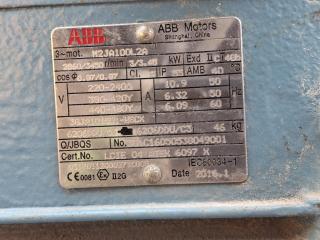

Model M2JA100L2A.
Motor nameplate speed 2880 or 2940 r per min.
Motor rated power 3.3 or 4.5 kW as per nameplate.
Voltage ranges 220 to 240 V 380 to 420 V and 440 to 480 V.
Frequency 50 Hz and 60 Hz as per nameplate.
Cos phi 0.87 or 0.90 as per nameplate.
Motor insulation class F.
Ambient temperature rating 40 degrees Celsius.
Motor protection marking Exd II CT4 Gb.
Motor weight 46 kg.
Motor standard IEC60034-1.
Motor nameplate date 2016-1.

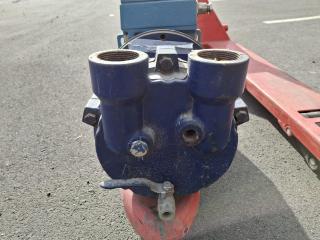

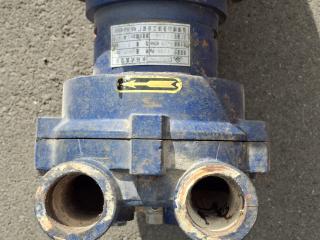

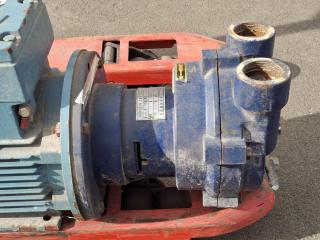

Attached blue water ring vacuum pump.

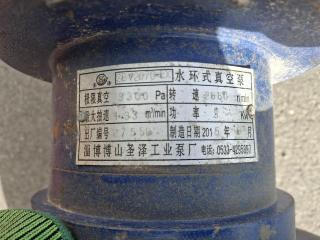

Pump model 2BV2070C-EX.
Pump maximum vacuum 3300 Pa.
Pump speed 2880 r per min.
Pump rated power 3 kW.
Pump maximum pumping speed 1.33 cubic metres per min.
Dimensions
Length: 660mm Width: 250mm Height: 300mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Untested - The product has not been tested
