SKYLARC ASSET REALISATION
Save us as a favourite seller to keep up with all our online events
MASSIVE NEW FACTORY LIQUIDATION
Stainless Tanks, Processing Machinery, Pumps, Blast Freezer, Refrigeration Equipment
AND MUCH MORE
Over 5 Million Dollars worth of near new equipment must be sold!
ALL $1 START = RESERVE
ONLINE NOW - See Sellers Other Listings!
Please read the VIEWING, PICKUP and DELIVERY details for this auction under the description, If you can’t collect on the dates below the DO NOT BID

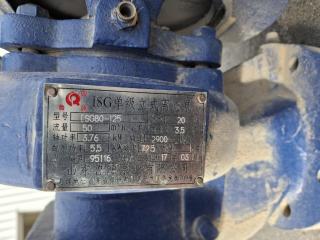

Pump model ISG80-125.
Pump rated flow 50 m3/h.
Pump rated head 20 m.
Pump shaft power 3.76 kW.
Pump rotational speed 2900 r/min.
Pump efficiency 72.5%.
Pump nameplate number 95116.
Pump manufacture date 2017-03.

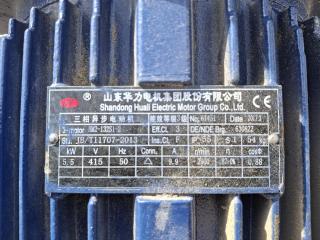

Motor manufacturer Shandong Huali Electric Motor Group Co Ltd.
Motor model HM2-132S1-2.
Motor rated power 5.5 kW.
Motor rated voltage 415 V.
Motor rated frequency 50 Hz.
Motor rated current 9.9 A.
Motor speed 2900 r/min.
Motor efficiency 87.0%.
Motor power factor 0.88.
Motor insulation class F.
Motor protection rating IP55.
Motor duty S1.
Motor bearing type 6308ZZ.
Motor weight 54 kg.

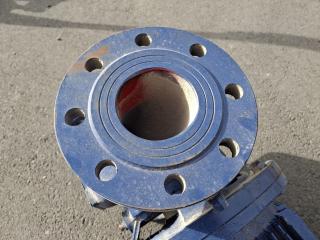

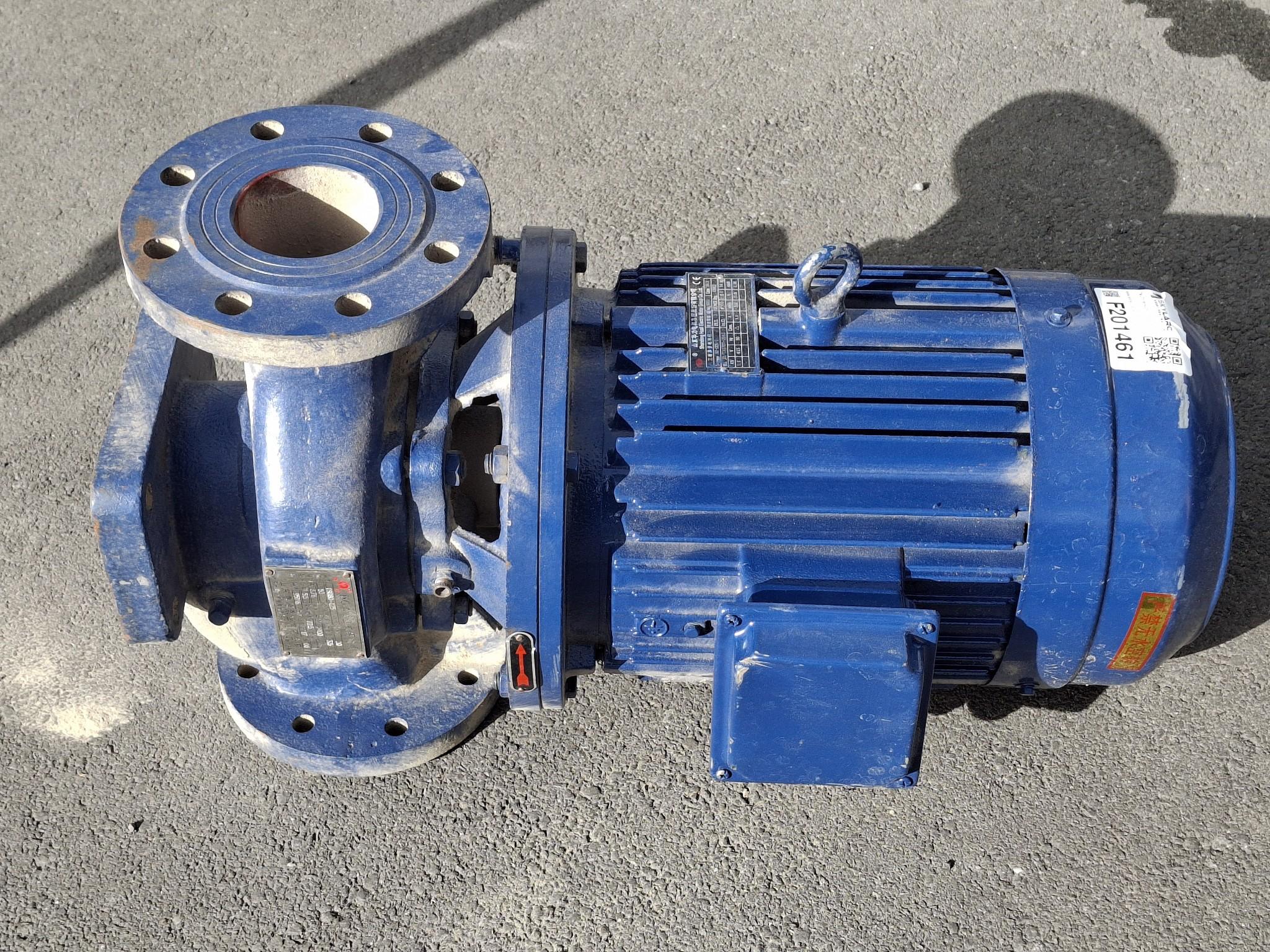

Unit is flange mounted.
Blue painted housing.

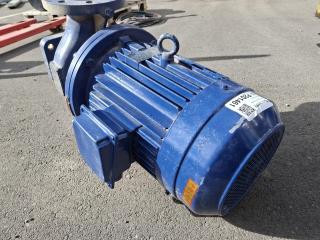

Three phase electric motor.
Dimensions
Length: 640mm Width: 350mm Height: 440mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Untested - The product has not been tested
