Manufacturer SEW-Eurodrive
Model R97 DRE160MC4
Rated power 11 kW S1
Rated frequency 50 Hz
Rated speed 1475 per minute
Thermal class 155 F
Cos phi 0.81
Protection class IP56
Efficiency class IE2
Inverter duty VPWM

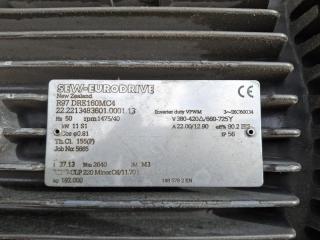

Standard IEC 60034 marking on nameplate
Rated voltage 380 to 420 volt delta
Rated voltage 660 to 725 volt star
Rated current 22.00 amp at delta
Rated current 12.90 amp at star
Gear ratio i 37.13
Output torque 2640 Nm

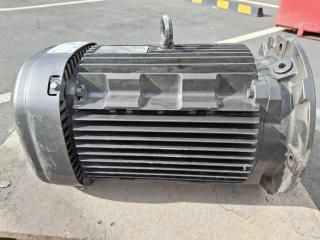

Lifting eye fitted on motor body

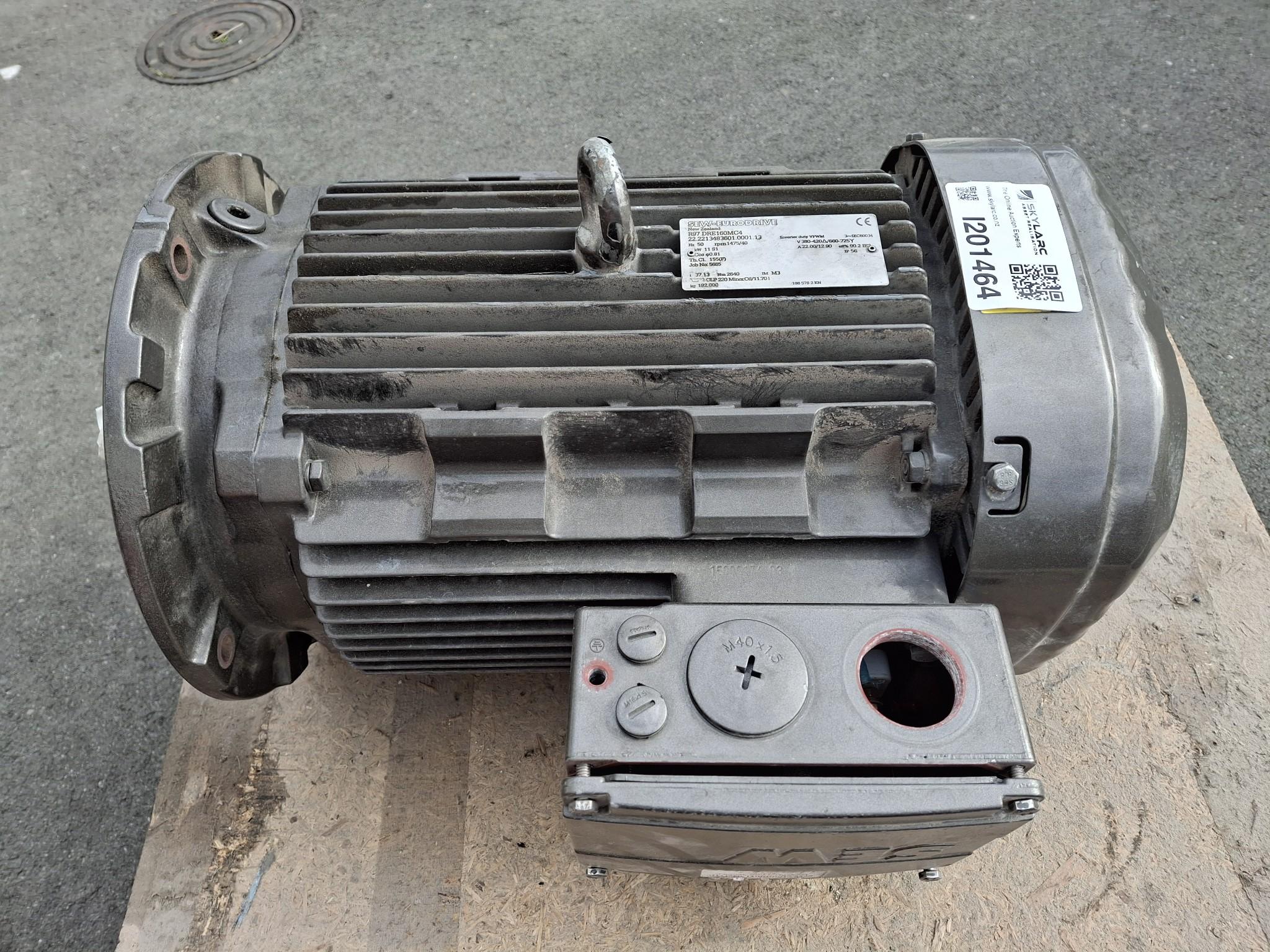

Enclosure with cable entry ports on side
Dimensions
Length: 530mm Width: 360mm Height: 300mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Untested - The product has not been tested
