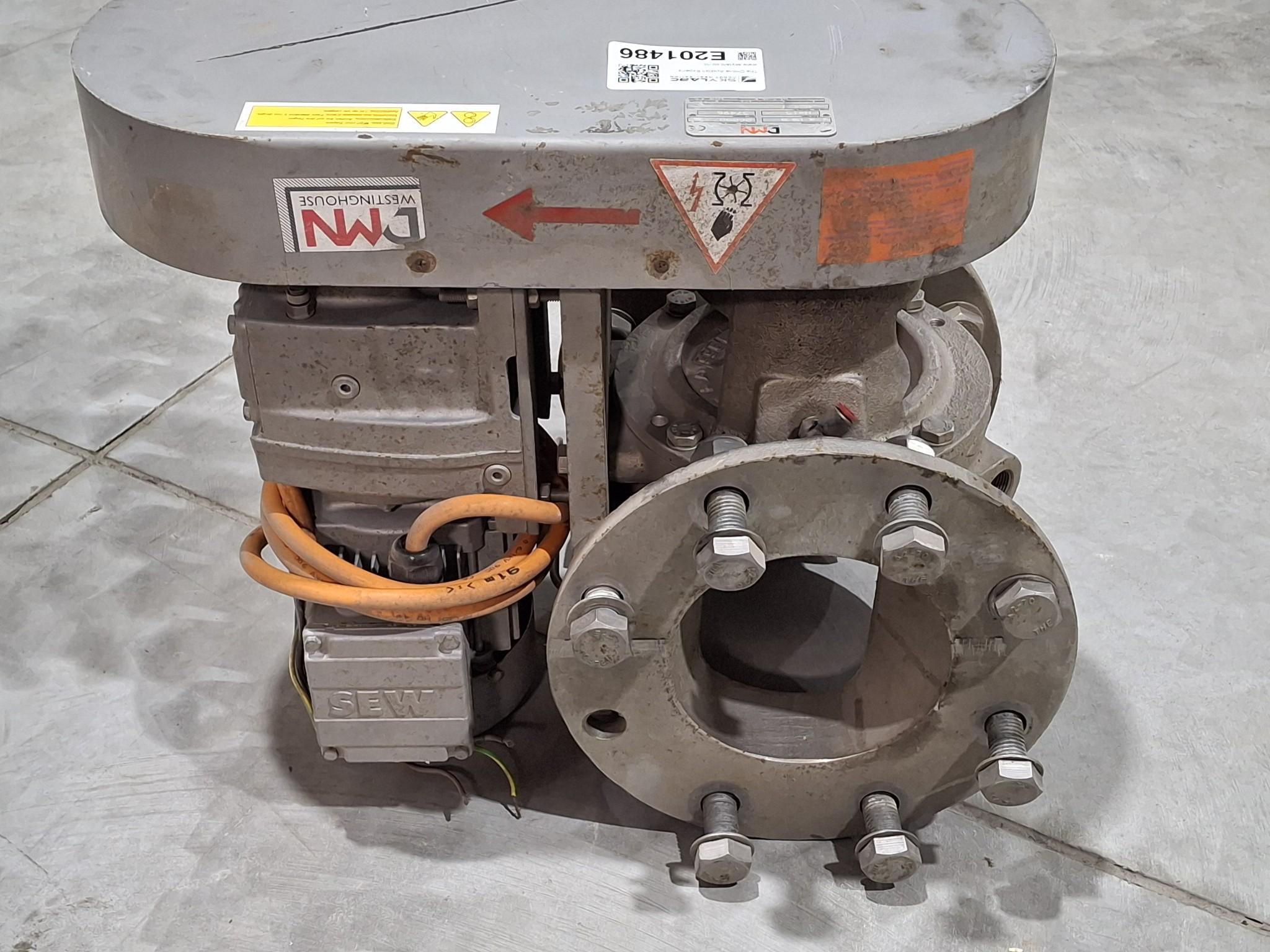

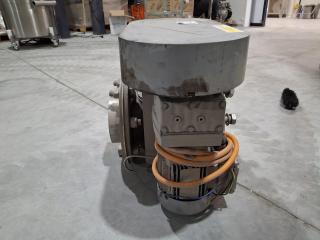

Brand SEW Eurodrive motor with Limitorque valve assembly
Motor type R37 D17D4
Motor power 0.37 kW
Motor voltage 50Hz 220-240 V delta or 380-415 V star
Motor voltage 60Hz 240-266 V delta or 415-460 V star
Motor enclosure rating IP55
Motor insulation class F
Motor duty type S1
Motor braking torque Ma 178 Nm at 146 Nm

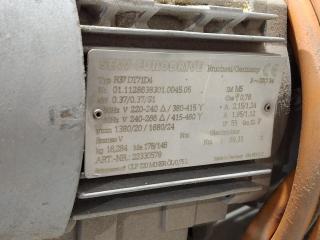

Nameplate shows cos phi 0.76
Nameplate shows current 2.15 or 1.24 A depending on connection

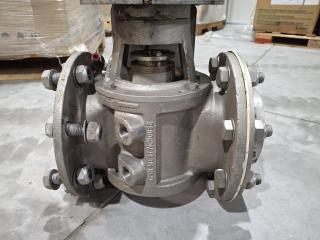

Valve body marked Limitorque

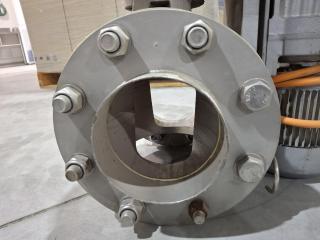

Valve has flanged ends with through bolts

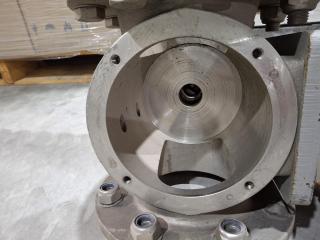

Valve body appears to be a rotating plug style based on internal view
Electric actuator housing mounted on top of valve body
Three phase motor per nameplate marking 3~ IEC 34
Dimensions
Length: 500mm Width: 380mm Height: 440mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Untested - The product has not been tested
