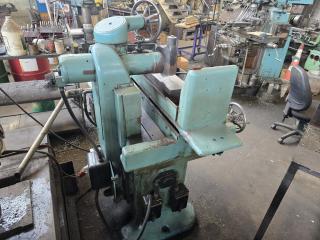

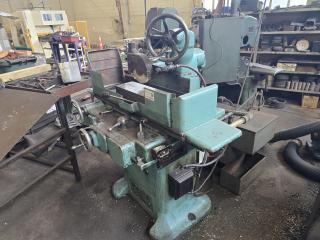

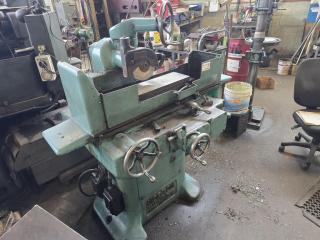

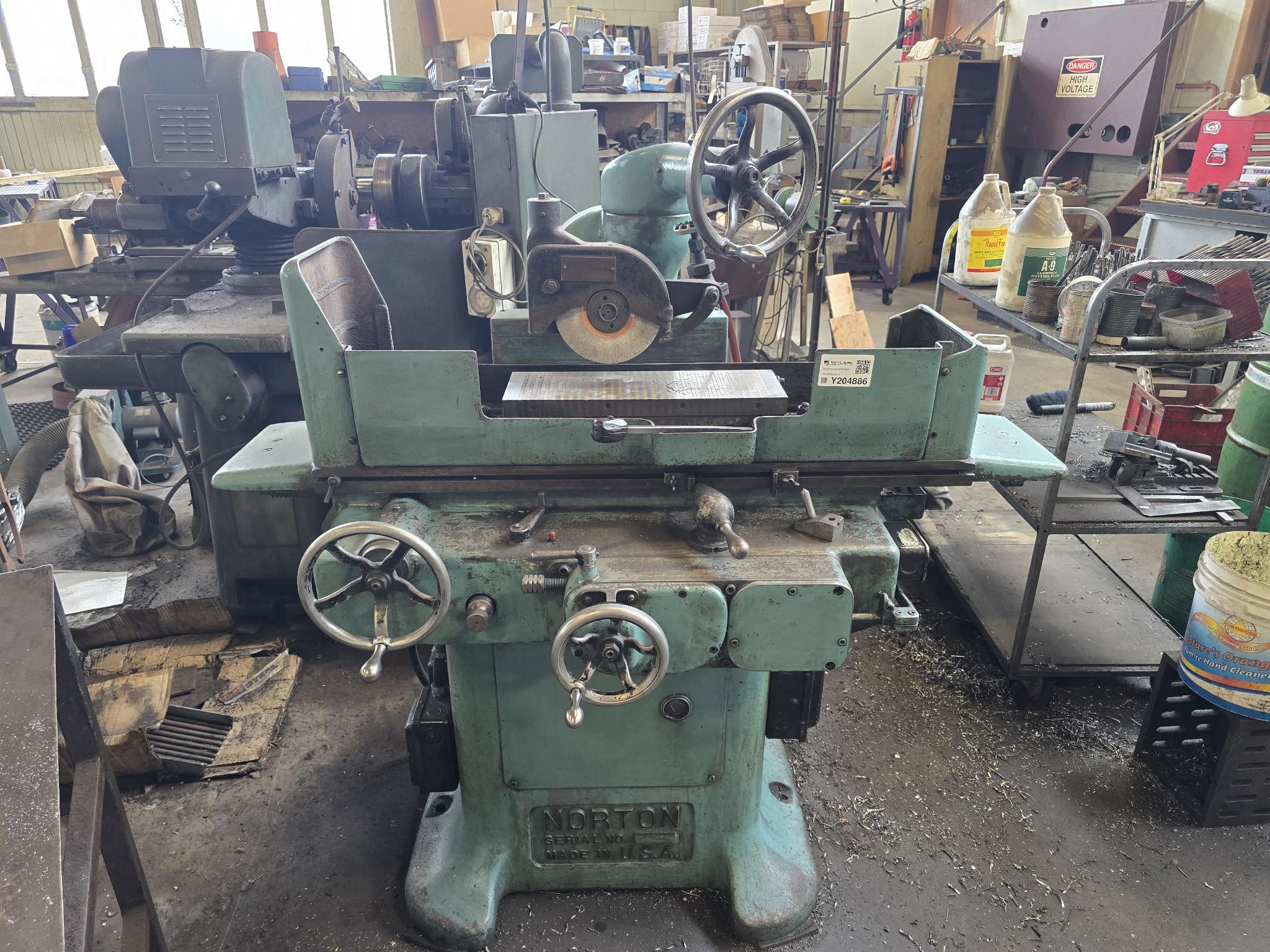

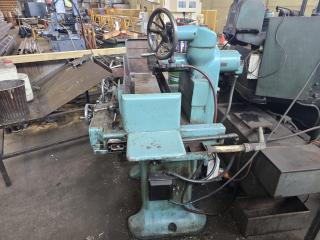

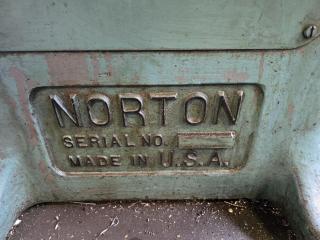

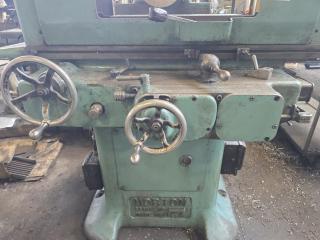

Norton surface grinder manufactured in USA.
Table dimensions 270 x 1080mm.

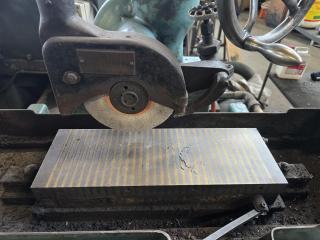

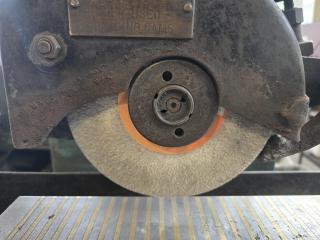

Magnetic chuck 445mm x 150mm
Maximum single length table 470mm.
Maximum table width 175mm.
Table feed hydraulic 0-30m/min.
Automatic table feed both directions.
Maximum spindle diameter 180mm.
Spindle speed 3500 rpm.
Vertical slide travel 280mm.
Maximum distance table to grinding wheel 370mm.
Motor 1 horsepower.
Motor voltage 220/380V.
Motor speed 3500 rpm.
Hydraulic system motor 0.75 horsepower.
Hydraulic motor voltage 220/380V.
Hydraulic motor speed 1725 rpm.

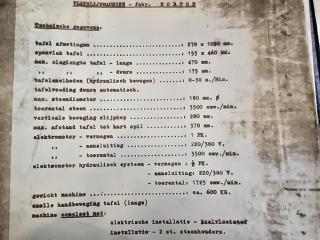

Manuals
Machine weight approximately 600kg.
Dimensions
Length: 1310mm Width: 1250mm Height: 1520mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Advanced Test - The vast majority of the products functions have been tested
