SKYLARC ASSET REALISATION
Save us as a favourite seller to keep up with all our online events
DESIGNSTEEL CLOSING DOWN AUCTION
Geka ALFA-500 CNC Punch and Shear, DYE 110 Ton Press Brake, DYE 8” Guillotine, Tiger 350CNC Cut Off Saw, Euromac Notching Machine, Almega Robot Welder, Ercolina Ring Roller, Demmeler Welding Tables, Sheet Metal Machinery, Lathes, Milling Machines
AND MUCH MUCH MORE!
ONLINE NOW - See Sellers Other Listings!
Please read the VIEWING, PICKUP and DELIVERY details for this auction under the description, If you can’t collect on the dates below the DO NOT BID
Collection for this auction is by appointment ONLY
A link to our pickup booking site will be emailed with the Trade Me payment instructions

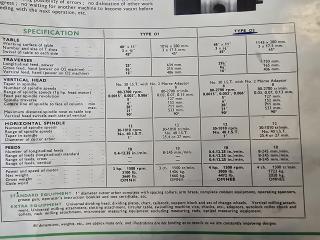

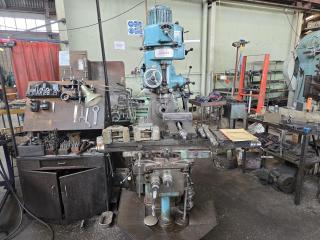

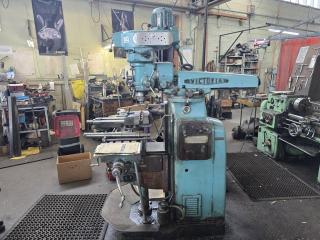

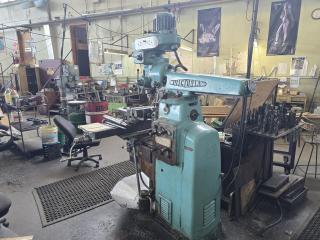

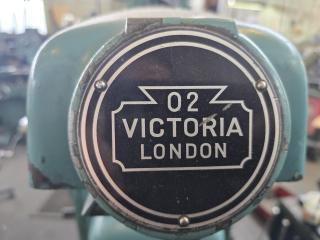

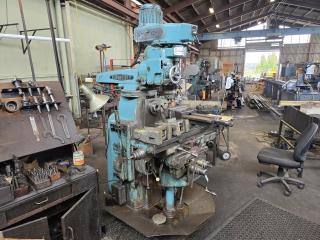

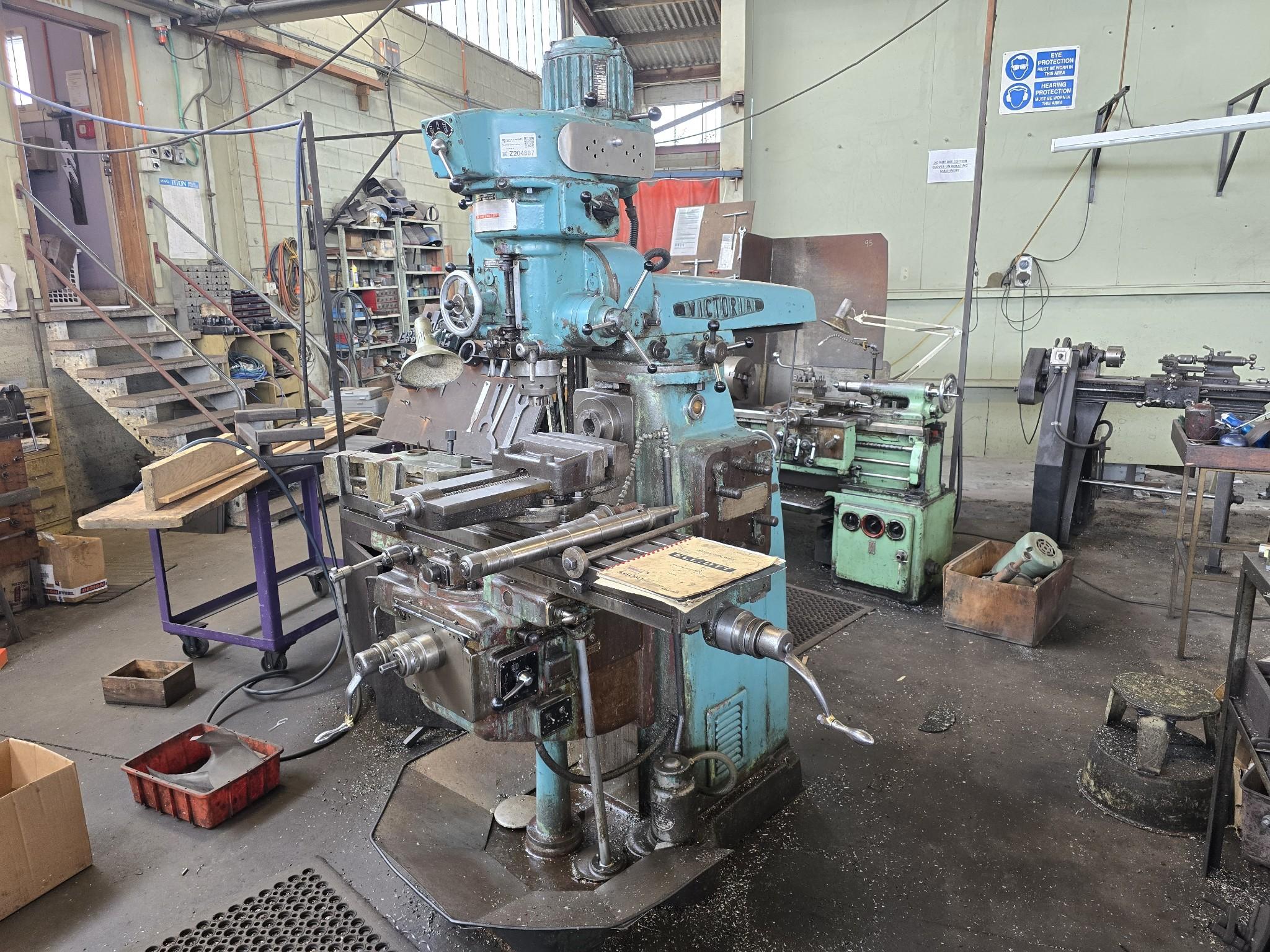

Model: Elliot Victoria Type O2

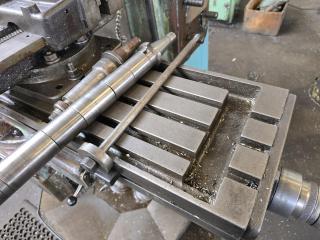

Table dimensions: 1143mm x 280mm
Number and size of T slots: 3 x 17.5mm
Swivel of table to each side: 45 degrees
Cross feed power: 6 feet
Vertical feed hand: 16 inches
Vertical head spindle: No. 30 I.S.T.
Spindle speed range: 80-2700 rpm
Feed per spindle revolution: 0.0015", 0.003", 0.006", 5", 6", 78"
Spindle traverse: 127mm
Centre line of nose to face of column minimum: 152mm
Centre line of nose to face of column maximum: 711mm
Maximum distance spindle nose to table top: 533mm
Vertical head swivel each side: 90 degrees
Horizontal spindle speeds: 12 speeds ranging 30-1010 rpm
Horizontal spindle taper: No. 40 I.S.T.
Diameter of cutter arbor: 1 inch
Number of longitudinal feeds: 18
Range of longitudinal feeds: 0.4-12.25 inches per minute
Vertical feed range: 8-245mm per minute
Motor: 4 horsepower
Motor speed: 1500 rpm
Dimensions
Length: 1700mm Width: 1630mm Height: 2150mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Basic Test - The products main function has been tested and operates
