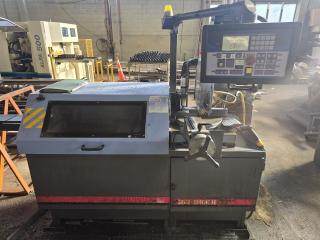

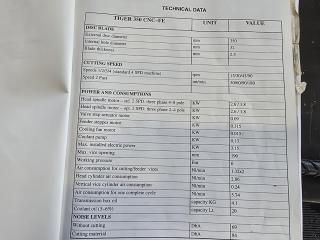

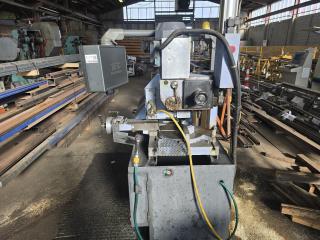

Model: Tiger 350 CNC FE.
Manufacturer: MEP SPA, Pergola, Italy.

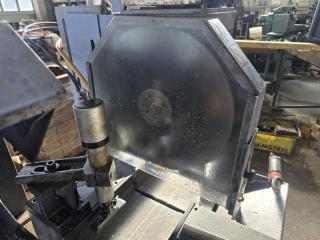

External disc blade diameter: 350mm.
Internal hole diameter: 32mm.
Blade thickness: 2.5mm.
Cutting speeds: 15/30/45/90 rpm standard, 30/60/90/180 mt/min fast.
Head spindle motor: 2.6/1.8 KW three phase.
Valve step actuator motor: 0.09 KW.
Feeder stepper motor: 0.315 KW.
Cooling fan motor: 0.015 KW.
Coolant pump: 0.13 KW.
Max installed electric power: 3.15 KW.

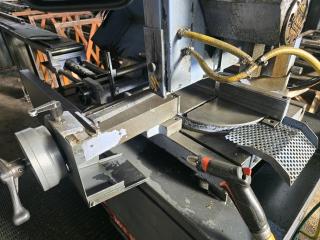

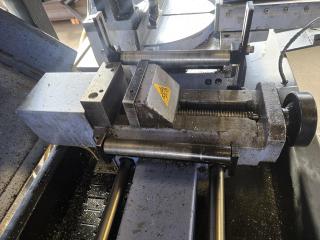

Max vice opening: 190mm.
Working pressure: 6 bar.
Coolant oil capacity: 20 litres.
Transmission box oil capacity: 4.1 kg.

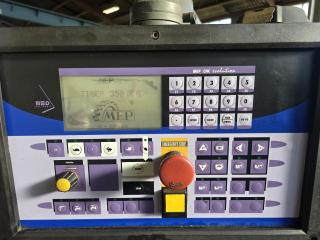

MEP CNC Evolution control system with LCD display and numeric keypad.

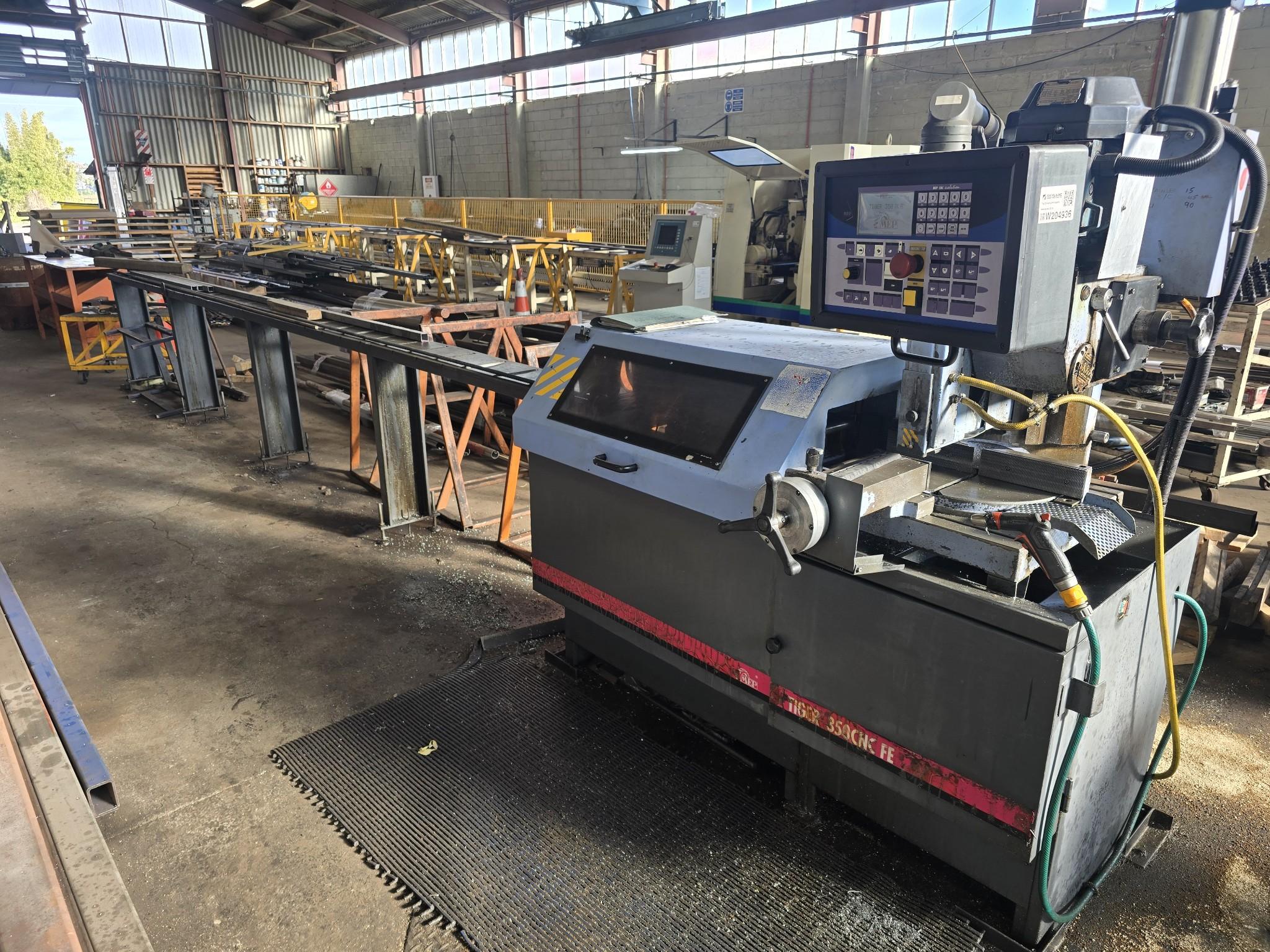

5980mm long intake roller table for material feed.
Dimensions
Length: 7640mm Width: 1100mm Height: 2030mm
Condition
Good - The item shows wear and tear from normal usage but is a servicable example
Testing
Advanced Test - The vast majority of the products functions have been tested
